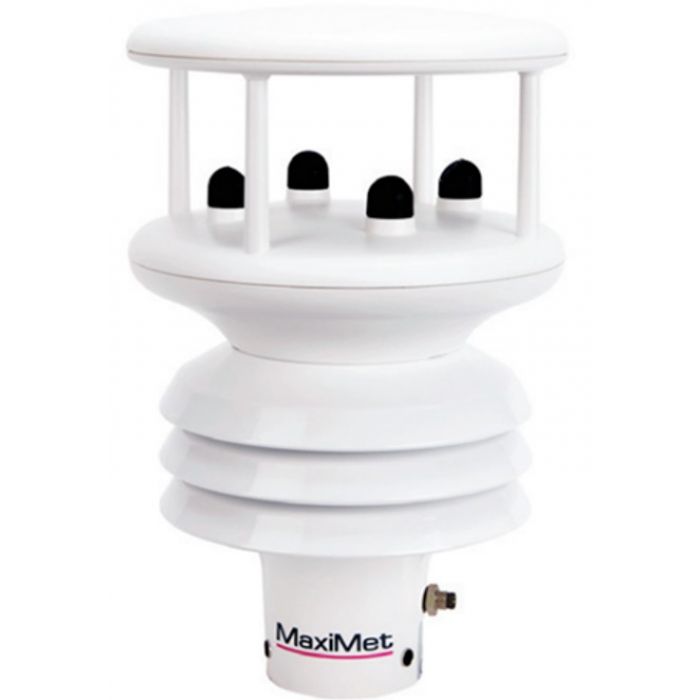

Gill MaxiMet GMX550 Compact Weather Station - White
R46,199.00
SKU
1957-0550-60-000
Gill proven reliability
Wind speed and direction measurements
Free of charge software
Manufacturer's Website
Description
When looking for a budget friendly compact weather station the MaxiMet GMX550 Compact Weather Station is the only station you will ever need. The MaxiMet GMX550 Compact Weather Station has some amazing features like real time wind speed and direction measurements, and its ability to read temperature, humidity and temperature in real time measurements. The compact design of the MaxiMet GMX550 Compact Weather Station gives you a lightweight and robust solution to your at home weather reading, as well as an easy to install system that won't cost you an arm and a leg to do.
Features
- Gill proven reliability
- Wind speed and direction measurements
- Free of charge software
- Quality measurements
- Light and robust design for easy installation
- Real time output
- Compact integrated design
Specifications
| Wind Speed | |
| Range | 0.01 m/s to 60m/s |
| Accuracy | (+/-)3% to 40 m/s, (+/-)5% to 60 m/s |
| Resolution | 0.01 m/s |
| Starting Threshold | 0.01 m/s |
| Sampling Rate | 1Hz |
| Units | m/s, km/hr, mph, kts, ft/min |
| Wind Direction | |
| Range | 0-359 degree |
| Accuracy | (+/-)3 degree to 40 m/s, (+/-)5 degree to 60 m/s |
| Resolution | 1 degree |
| Starting Threshold | 0.01 m/s |
| Sampling Rate | 1Hz |
| Units | Degree |
| Temperature | |
| Range | -40 degree Celsius to +70 degree Celsius |
| Resolution | 0.1 |
| Accuracy | (+/-)0.3 degree Celsius at 20 degree Celsius |
| Sampling Rate | 1Hz |
| Units | Degree C, F, K |
| Humidity | |
| Range | 0-100% |
| Resolution | 1% |
| Accuracy | (+/-)2% at 20 degree Celsius (10% - 90% RH) |
| Sampling Rate | 1Hz |
| Units | %, RH, g/m cubed |
| Dew Point | |
| Range | -40 degree Celsius to +70 degree Celsius |
| Resolution | 0.1 |
| Accuracy | (+/-)0.3 degree Celsius at 20 degree Celsius |
| Units | Degree C, F, K |
| Sampling Rate | 1Hz |
| Pressure | |
| Range | 300 to 1100 hpa |
| Resolution | 0.1 hpa |
| Accuracy | (+/-)0.5 hpa at 25 degree Celsius |
| Sampling Rate | 1Hz |
| Units | hpa, mbar, mmHg, inHg |
| Precipitation | |
| Measurement type | TBRG |
| Range | 0 to >1000 mm/hr |
| Precipitation Resolution | 0.001 mm |
| Units | mm/hr, mm/total, mm/24 hr, in/hr, in/total, in/24 hr |
| Input to GMX | Contact closure via an M8 male 4-pin connector optional 20m cable or mating female connector required |
| Outputs | |
| Output Rate | 1s, 1 min, 1 hr |
| Digital Comms Modes | Serial RS232, RS422, RS485, SDI-12, NMEA, MODBUS, ASCII |
| Analogue Outputs | Available via separate optional device |
| Power | |
| Power Supply | 5 to 30 Vdc |
| Power (Nominal) 12 Vdc | 25 mA continuous high mode. 0.7 mA eco-power mode (1 hour polled) |
| Environmental Conditions | |
| IP Rating | 66 |
| Operational Temperature Range | -40 degree Celsius to +70 degree Celsius |
| EMC Standard | BS EN 61326-2-1 : 2013 FCC, CFR Title, 47, Part 15, Subpart Bm Class A digital Device |
| CE Marking | Yes |
| RoHS Compliant | Yes |
| Weight | 0.7kg |
| Origin | UK |
| Free Shipping | No |
|---|
