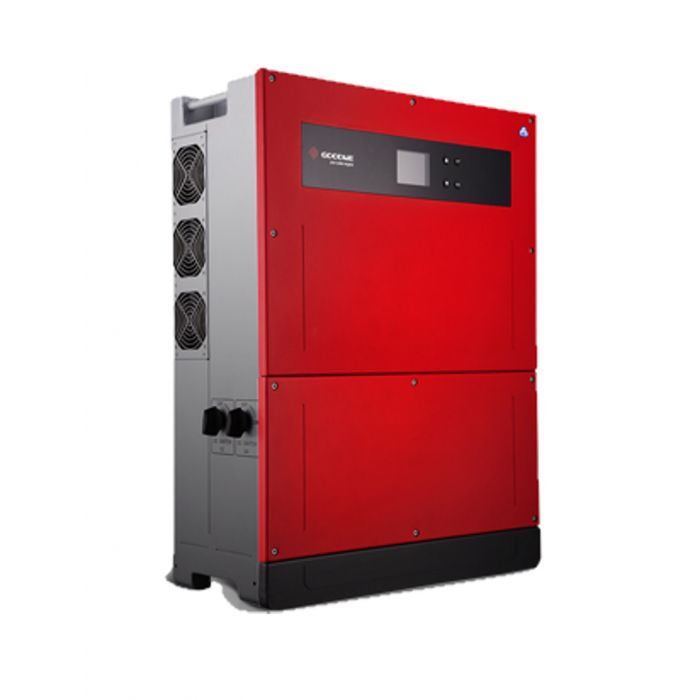

GoodWe GW80K-MT Solar Inverter - Red, 80kW (No LCD)
R17,449.00
SKU
3402000032
Manufacturer's Website
Description
The GodWe GW80K-MT Solar Inverter - Red, 80kW (No LCD) is suited for medium and large scale commercial rooftops and ground-mounted solar PV systems where maximum versatility and profitability are important.
With its compact design and power boost function, the Goodwe MT series of the new generation can provide a 150% continuous maximum AC output power overload, offering a faster return on investment. The start-up voltage is 200V, much lower than other products, which makes the inverter start up earlier, therefore generating more power over time.
Features
- Up to 150% DC input oversizing
- Up to 115% AC output overloading
- Up to 99% Max. Efficiency
- String level monitoring
- Full-load running at 50C
- Power line communication
Specifications
| Input Data | |
| Max Input Voltage | 1100 |
| MPPT Operating Voltage Range | 200 1000 |
| Start-Up Voltage | 200 |
| Nominal Input Voltage | 620 |
| Max Input Current Per MPPT | 44 |
| Max Short Circuit Current Per MPPT | 55.0 |
| Number of MPP Trackers | 4 |
| Number of Strings Per MPPT | 3 |
| Output Data | |
| Nominal Output Power | 80000 |
| Nominal Output Apparent Power | 80000 |
| Max AC Active Power | 880001 |
| Max AC Apparent Power | 880002 |
| Nominal Output Voltage | 400, 3L / N / PE or 3L / PE |
| Nominal AC Grid Frequency | 50 / 60 |
| Max Output Current | 133.0 |
| Power Factor | 1 (adjustable from 0.8 lagging to 0.8 leading) |
| Max Total Harmonic Distortion | <3% |
| Max Efficiency | 98.8% |
| General Data | |
| Operating Temperature Range | -30 +60 Degrees Celsius |
| Relative Humidity | 0 100% |
| Max Operating Altitude | 4000 |
| Cooling Method | Fan Cooling |
| User Interface | LED, WiFi + APP |
| Communication | RS485, WiFi, PLC (Optional) |
| Weight | 70.0kg |
| Dimensions | 586mm x 788mm x 267mm (W x H x D) |
| Topology | Non-isolated |
| Self-Consumption at Night | <1 |
| Ingress Protection Range | IP65 |
| DC Connector | MC4 (4 6mm) |
