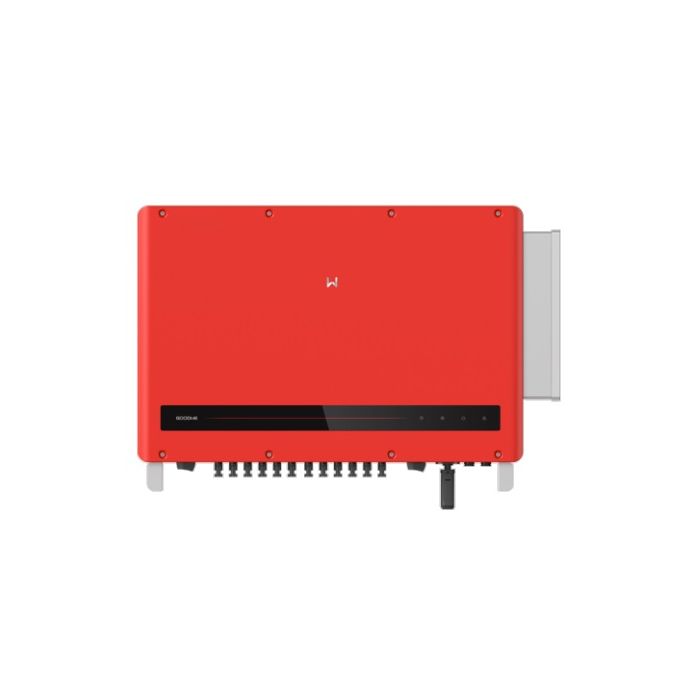

Goodwe GW250K-HT Series Inverter
R158,889.00
SKU
3002000030
Smart string protection switch
20 A max. current per string
String level monitoring
Power line communication 2.0
Shipping restrictions apply.
Manufacturer's Website
Description
The Goodwe GW250K-HT Series Inverter is GoodWes top inverter with an extensive list of features designed to reduce system and O&M costs. It is a perfect choice for the utilization of utility-scale centralized PV plants to maximize the return of investment. The HT1500V Series boasts options of 6 MPPTs and 12 MPPTs, power line communication 2.0, and is compatible with bifacial 182mm/210mm modules. It features string level monitoring and incorporated I-V curve diagnosis for intelligent detection of voltage and current issues. The series is also equipped with optional PID recovery function and can realize 24-hour monitoring. For GW225KN-HT & GW250KN-HT, the unique mechanism of smart string protection switch will minimalize the energy generation loss when a short circuit or reverse connection occurs. The configuration of the HT1500V can be easily done via Bluetooth, while firmware diagnosis and upgrading can be operated remotely. These outstanding sets of features were conceived to ensure the lowest levelized cost of energy (LCOE) and a utility that runs efficiently.
HT Series is ideal for high-power 182mm/210mm modules on the market featuring MPPT-level maximum 60 A DC input current. GW225KN-HT & GW250KN-HT support max. 20 A DC input current per string, and GW225K-HT & GW250K-HTsupports Max. 15 A DC input current per string, making full use of power generated and guarantees LCOE for clients. Featuring smart string protection switch, the inverter can detect a short circuit or reverse connection, automatically turn off the switch to stop the corresponding MPPTs, and report the fault at the same time, which ensures both safety and efficiency. HT Series also allows for string level monitoring and supports intelligent detection of voltage and current issues, guaranteeing fast troubleshooting.
Features
- Smart string protection switch
- 20 A max. current per string
- String level monitoring
- Power line communication 2.0
- Data security and fault recording
Specifications
| Max. Input Voltage (V) | 1500 |
| MPPT Operating Voltage Range (V) | 500 - 1500 |
| Start-up Voltage (V) | 550 |
| Nominal Input Voltage (V) | 1160 |
| Max. Input Current per MPPT (A) | 30 |
| Max. Short Circuit Current per MPPT (A) | 50 |
| Number of MPP Trackers | 12 |
| Number of Strings per MPPT | 2 |
| Nominal Output Power (kW) | 250 |
| Nominal Output Apparent Power (kVA) | 250 |
| Max. AC Active Power (kW) | 250 |
| Max. AC Apparent Power (kVA) | 250 |
| Nominal Output Voltage (V) | 800, 3L / PE 800 |
| Nominal AC Grid Frequency (Hz) | 50 / 60 |
| Max. Output Current (A) | 180.5 |
| Power Factor | 1 (Adjustable from 0.8 leading to 0.8 lagging) |
| Max. Total Harmonic Distortion | 3% |
| Max. Efficiency | 99.0% |
| European Efficiency | 98.5% |
| Free Shipping | No |
|---|
