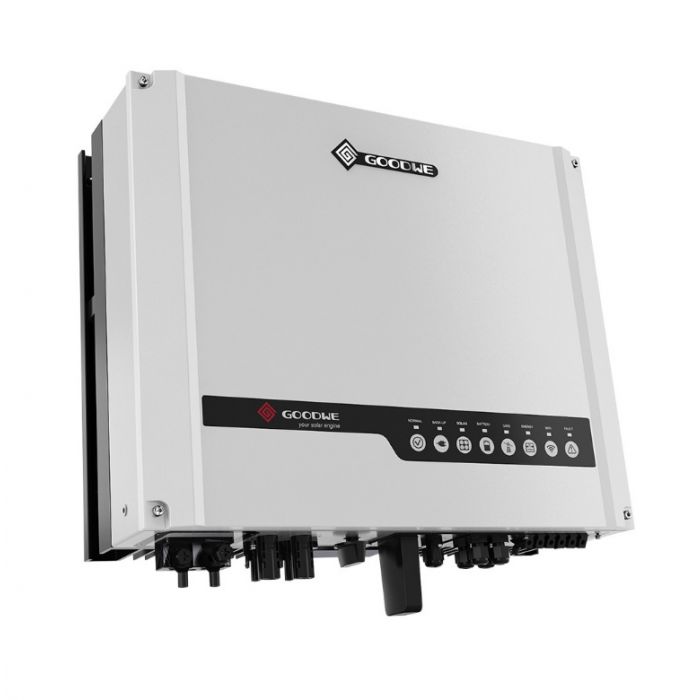

Goodwe GW3648D-ES Hybrid Inverter - 3.6kW, White
R28,819.00
SKU
3602000009
Programmable supply priority for PV, Battery or Grid
Max. DC Input Power for PV String: 4600W
Nominal Battery Voltage: 48V
Battery Capacity: 50 to 2000Ah
Description
The GoodWe GW3648D-ES Hybrid Inverter - White was built for Hybrid Solar Operation. They boost self-consumption in areas with a high electrical rate and a relatively low FIT.
The inverter is for areas and regions where, peak shaving can be applied and feed-in power is restricted, this system would be a good fit.
Features
- Self-consumption and Feed-in to the grid
- Programmable supply priority for PV, Battery, or Grid
- User-adjustable battery charging current suits different types of batteries
- Monitoring software for real-time status display and control. (Not web-based.)
- Grid Feed-Back Control and Zero Grid Feed-in
Specifications
| Model | GW3648D-ES |
| Battery Input | |
| Battery Type | Li-ion or Lead-acid |
| Nominal Battery Voltage | 48V |
| Max. Charging Voltage | <60 (Configurable) |
| Max. Charging Current | 75A |
| Max. Discharging Current | 75A |
| Battery Capacity | 50 to 2000Ah |
| PV String Input | |
| Max. DC Input Power | 4600W |
| Max. DC Input Voltage | 580V |
| MPPT Range | 125 to 550V |
| Start-Up Voltage | 150V |
| Nominal DC Input Voltage | 360V |
| Max.Input Current | 11/11A |
| Max. Short Current | 13.8/13.8A |
| No.of MPP Trackers | 2 |
| No.of Strings Per MPP Tracker | 1 |
| AC Output (On Grid) | |
| Nominal Apparent Power Output to Utility Grid | 3680VA |
| Max.Apparent Power Output to Utility Grid | 3680VA |
| Max.Apparent Power from Utility Grid | 7360VA |
| Nominal Output Voltage | 230V |
| Nominal Output Frequency | 50/60Hz |
| Max.AC Current Output to Utility Grid | 16A |
| Max. AC Current from Utility Grid | 32A |
| Output Power Factor | 1 |
| Output THDi | <3% |
| AC Output Data (Back-up) | |
| Max.Output Apparent Power | 3680VA |
| Peak Output Apparent Power | 5520, 10sec |
| Max.Output Current | 16A |
| Nominal Output Voltage | 230V (+/-2%) |
| Nominal Output Frequency | 50/60 (+/-0.2%) |
| Output THDv | <3% |
| Efficiency | |
| Max/Efficiency | 97.6% |
| Max.Battery to Load Efficiency | 94.0% |
| European Efficiency | 97.0% |
| Protection | |
| Anti-Islanding Protection | Integrated |
| PV String Input Reverse Polarity Protection | Integrated |
| Insulation Resistor Detection | Integrated |
| Residual Current Monitoring Unit | Integrated |
| Output Overcurrent Protection | Integrated |
| Output Short Protection | Integrated |
| Output Over Current Voltage Protection | Integrated |
| General Data | |
| Operating Temperature Range | -25 to 60 degrees Celsius |
| Relative Humidity | 0 to 95% |
| Operating Altitude | <4000m |
| Cooling | Natural Convection |
| Weight | 28kg |
| Free Shipping | No |
|---|
