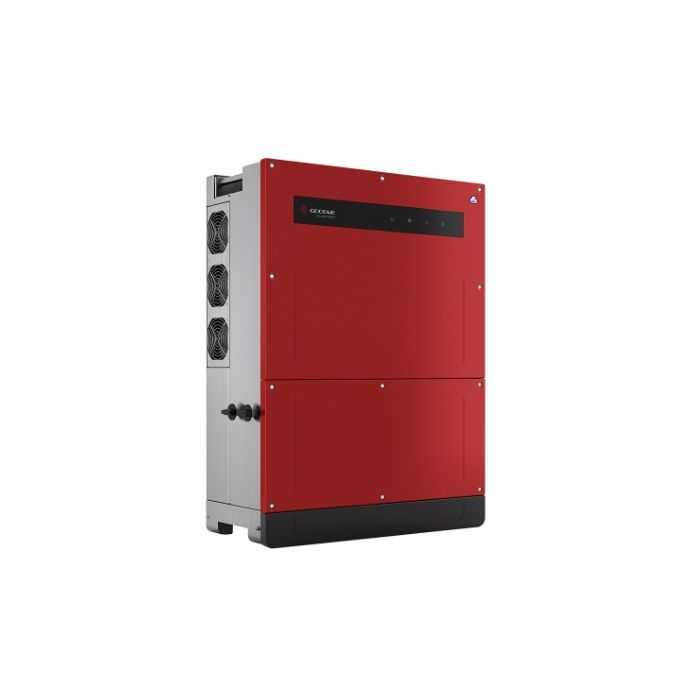

Goodwe GW60KN-MT MT Series Inverter
R71,819.00
SKU
3002000024
Up to 150% DC input oversizing
Four MPPT maximize output
Up to 99% Max. Efficiency Power line communication
Shipping restrictions apply.
Manufacturer's Website
Description
The Goodwe GW60KN-MT MT Series Inverter is suited for medium and large scale commercial rooftops and ground-mounted solar PV systems where maximum versatility and profitability are important. With its compact design and power boost function, the Goodwe MT series of the new generation can provide a 150% continuous maximum AC output power overload, offering a faster return on investment. The start-up voltage is 200V, much lower than other products, which makes the inverter start up earlier, therefore generating more power over time.
Four MPPT maximize output
Improve your energy harvest with four MPPT trackers to minimize output losses caused by partial shading and other mismatch effects.
PLC Communication
The optional PLC communication offers stable data transmission and enables monitoring of large PV systems in remote areas.
Features
- Up to 150% DC input oversizing
- Four MPPT maximize output
- Up to 99% Max. Efficiency Power line communication
- PLC Communication
- Up to 115% AC output overloading Full-load running at 50C
- String level monitoring
Specifications
| PV String Input Data | 87500 |
| Max. DC Input Voltage (V) | 1000 |
| MPPT Range (V) | 200850 |
| Start-up Voltage (V) | 200 |
| MPPT Range for Full Load (V) | 520850 |
| Nominal DC Input Voltage (V) | 620 |
| Max. Input Current (A) | 30 |
| Max. Short Current (A) | 38 |
| No. of MPP Trackers | 4 |
| No. of Input Strings per Tracker | 3 |
| Nominal Output Power (W) | 60000 |
| Max. Output Power (W) | 66000, 69000@415Vac |
| Max. Output Apparent Power (VA) | 66000, 69000@415Vac |
| Nominal Output Voltage (V) | 400, 3L/N/PE or 3L/PE |
| Nominal Ouput Frequency (Hz) | 50/60 |
| Max. Output Current (A) | 96 |
| Output Power Factor | 1 (Adjustable from 0.8 leading to 0.8 lagging) |
| Output THDi (@Nominal Output) | <3% |
| Max. Efficiency | 98.8% |
| Euro Efficiency | 98.5% |
| Free Shipping | No |
|---|
