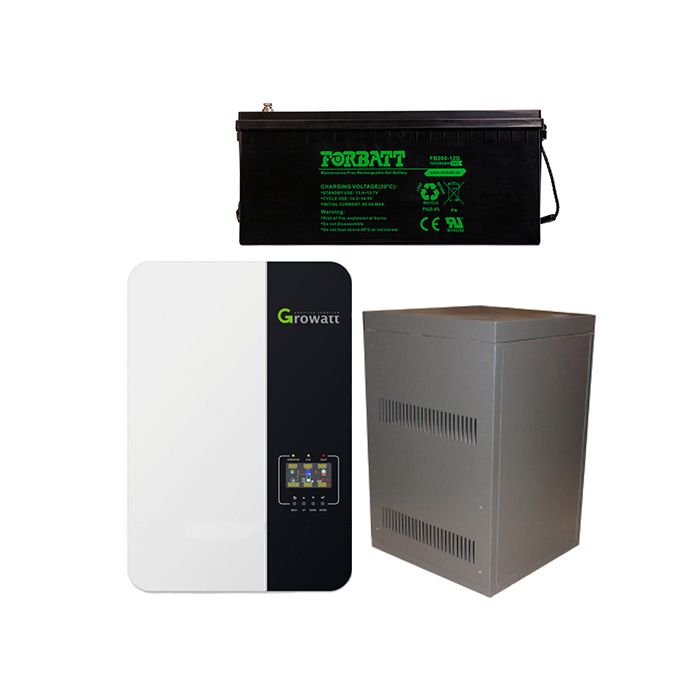

This complete battery back-up kit includes 1x Growatt SPF 5000 ES Hybrid Inverter, 4x Forbatt 200Ah Gel Batteries and 1x A8 Battery Cabinet.
The Growatt SPF 5000 ES 5kVA 5.5kW 48V Hybrid Inverter is a multi-functional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter with a UPS function module all in one machine. This unit is perfect for off grid backup power and self-consumption applications. The Growatt SPF 5000 ES Hybrid Inverter can be used with or without a battery. Growatt 5kW inverters are extensively used worldwide for applications in residential, commercial, utility-scale scenarios as well as other storage power station projects.
The Forbatt FB200-12G Gel Battery will power your way through any situation. Gel batteries have longer service lives than lead acid or AGMs. They feature higher discharge capabilities, good recovery from deep discharge and super thermal stability.
The PHD Powerhouse A8 Battery Cabinet is an essential item to have in your office or factory to sufficiently house your batteries that keep your business running during power cuts. Through cutting-edge research and innovation, advanced engineered power products for back-up battery cabinets have become essential to our energy future. When the power goes out, battery back-ups ensure that the Internet, cloud-based data, financial and health records stay accessible. The role of batteries in producing emergency power supply for industries across the country is vital for our infrastructure.
Growatt SPF 5000 ES Hybrid Inverter
PHD Powerhouse A8 Battery Cabinet
Growatt SPF 5000 ES Hybrid Inverter - 5kVA, 5.5kW, 48V | |
Battery Voltage | 48VDC |
Inverter Output | |
Rated Power | 5000VA/5000W |
Parallel Capability | Yes, 6 Units |
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz |
Surge Power | 10000VA |
Efficiency (Peak) | 93% |
Waveform | Pure Sine Wave |
Transfer Time | 10ms (For Personal Computers); 20ms (For Home Appliances) |
Solar Charger | |
Maximum PV Array Power | 5500W |
MPPT Range @ Operating Voltage | 120VDC - 430VDC |
Maximum PV Array Open Circuit Voltage | 450VDC |
Maximum Solar Charge Current | 100A |
Maximum Efficiency | 97% |
AC Charger | |
Charge Current | 80A |
AC Input Voltage | 230VAC |
Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
Frequency Range | 50Hz/60Hz (Auto sensing) |
Physical | |
Dimension (D/W/H) | 485/330/135mm |
Net Weight | 12kg |
Operating Environment | |
Humidity | 5% to 95% Relative Humidity(Non-condensing) |
Operating Temperature | 0°C - 55°C |
Storage Temperature | -15°C - 60°C |
Forbatt FB200-12G Gel Battery | |
Nominal Voltage | 12V |
Rated Capacity (20hr Rate) | 200Ah |
Length | 524mm |
Width | 239mm |
Height | 218mm |
Total Height | 226mm |
Weight | 62kg |
Capacity After 3 month Storage | 90% Self-Discharge |
Cycle Service Life @ 50% DoD | 700 - 800 Cycles |
PHD Powerhouse A8 Battery Cabinet | |
Height | 625 mm |
Width | 806 mm |
Depth | 428 mm |
