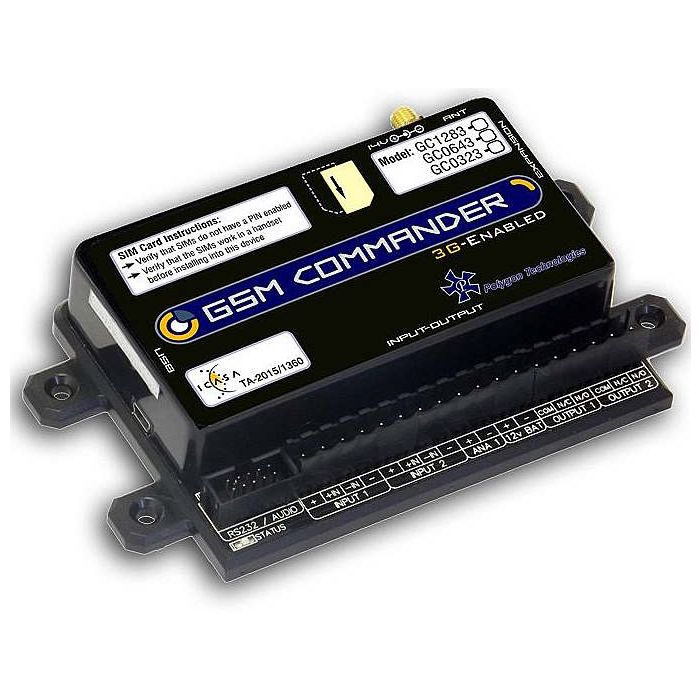

GSM Gc0328-4G-Oem Lite Commander - 12 inputs

Description

Introducing the GSM Gc0328-4G-Oem Lite Commander - 12 inputs. A versatile and expandable control unit designed for various industrial and monitoring applications. With the ability to configure up to 32 behavior statements, this device offers robust functionality through its SmartSetup software, which provides an easy point-and-click interface for setup. The base unit includes 2 opto-isolated digital inputs, expandable up to 12 inputs, and 2 relay outputs, expandable up to 12 outputs. This flexibility makes it suitable for a wide range of monitoring and control tasks.

The Lite Commander is powered by a 10-24V DC input and includes a battery backup input with a trickle charge function, ensuring reliable operation even during power interruptions. Additionally, it features an analog input and two temperature inputs (requiring GT008 sensors) for comprehensive environmental monitoring. The device supports RS485 Modbus RTU for integration with other industrial systems, and it offers basic GPRS capability alongside SMS and voice call functionality for remote notifications and control.

Constructed to withstand various environmental conditions, the Lite Commander operates efficiently within a temperature range of -10 to +60 degrees Celsius and can be stored in temperatures ranging from -20 to +85 degrees Celsius. Its compact dimensions (148 x 86 x 28mm) make it easy to install in diverse locations. The digital inputs are opto-isolated, accepting DC signals from dry contacts, open collectors (NPN/PNP), or DC voltages (6-18V), and the digital outputs are SPDT relays capable of handling 8Amp DC or 4Amp AC loads. With a current consumption of just 60mA at idle, the Lite Commander is an energy-efficient solution for advanced monitoring and control applications.

Features

• 1 analog input
• 10 - 24vdc power input
• 1 battery backup input & trickle charge function
• 2 temperature inputs (must use gt008)
• Rs485 - modbus rtu
• Sms, voice call and basic gprs capability
• Easy to set up with point-and-click smartsetup computer software. up to 32 statements
• Base unit with 2x opto isolated digital inputs (expandable up to 12 inputs)
• Base unit with 2x 8amp relay outputs (expandable up to 12 outputs)

Specifications
