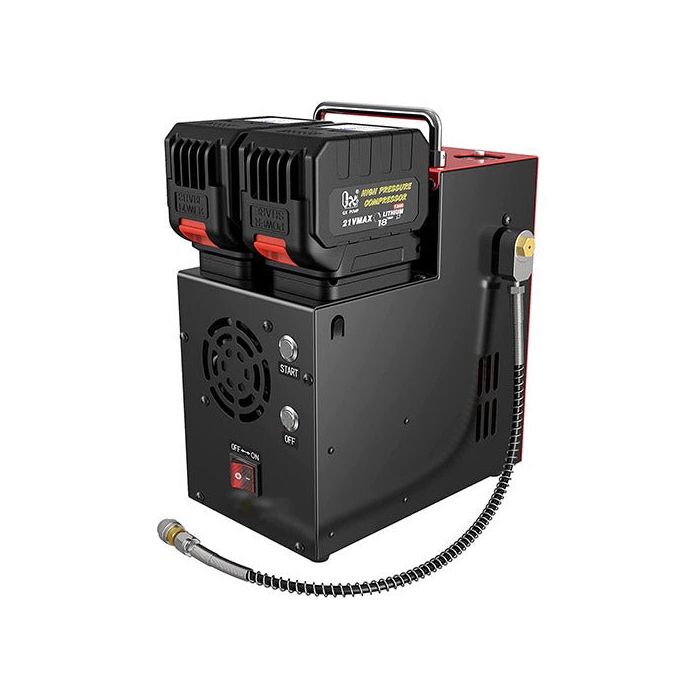

GX GX-E-L3 Mini PCP 12V High Pressure Compressor

Manufacturer's Website

Description

Introducing the GX GX-E-L3 Mini PCP 12V High Pressure Compressor. The GX GX-E-L3 Mini PCP 12V High Pressure Compressor is a highly versatile and portable solution for inflating a variety of airguns, rifles, paintball tanks, and mini diving tanks. Its innovative design emphasises convenience and efficiency, featuring dual 18V lithium batteries that provide a reliable power source for outdoor and indoor use. Each fully charged battery takes approximately two hours to reach full capacity and can sustain operation for about half an hour. When two batteries are used simultaneously, the compressor can operate continuously for up to an hour, ensuring users are not limited by power constraints. This dual-battery setup allows for seamless operation, as one battery can be charging while the other is in use, making it particularly suitable for extended sessions or remote applications where access to power outlets may be limited.

Constructed with user safety and ease of maintenance in mind, the compressor boasts a water/oil-free operation thanks to its built-in oil-water separator and cooling fan. The absence of standard oil or external cooling water simplifies the operation, reducing the need for additional maintenance and ensuring the air produced is dry and clean. The internal high-power fan significantly enhances cooling efficiency, preventing overheating during extended use. Four vents facilitate rapid heat dissipation, while the oil-water separator ensures that moisture and contaminants are minimised, maintaining optimal air quality for sensitive equipment. It is important to note that the fan operates manually, users should allow the machine to cool after each use before turning off the fan to prolong its lifespan.

This compressor offers precise control over inflation pressures with its adjustable pressure gauge and automatic shutoff feature. Capable of reaching a maximum pressure of 4500 PSI (320 Bar/32 Mpa), it can meet the demands of most high-pressure airguns and tanks. Users can set their desired pressure levels, and the compressor will automatically cease operation once the preset pressure is achieved, saving time and effort. The motor runs at 3000 RPM with an output flow rate of 14 litres per minute, enabling rapid inflation. For example, inflating a 500cc tank from zero to 30 MPa takes approximately 13 minutes, while increasing from 20 MPa to 30 MPa takes only about four minutes. The included 8mm quick female connector provides a secure and convenient connection to most airguns, rifles, and tanks, facilitating quick setup and operation.

Despite its compact size and lightweight design-weighting just 17.8 pounds-the GX GX-E-L3 delivers powerful performance with a working power of 250W and a maximum working pressure of 32 MPa. Its portability makes it an excellent choice for outdoor enthusiasts, professional shooters, or hobbyists who need reliable high-pressure inflation on the go. For safety and longevity, it is recommended to operate the compressor in cycles of 15 minutes of use followed by 10 minutes of rest, and to always release the bleed valve after powering down to prevent internal pressure buildup. Overall, this high-pressure compressor combines advanced features, safety protocols, and convenience, making it a top-tier tool for high-pressure inflation needs across various applications.

Features

• 4500Psi/320Bar high pressure
• 8MM quick female connector
• Built-in oil-water separator
• 18V lithium battery
• Oil-Water free
• Fan Cooling
• Auto-Stop
• Set-Pressure

Specifications
