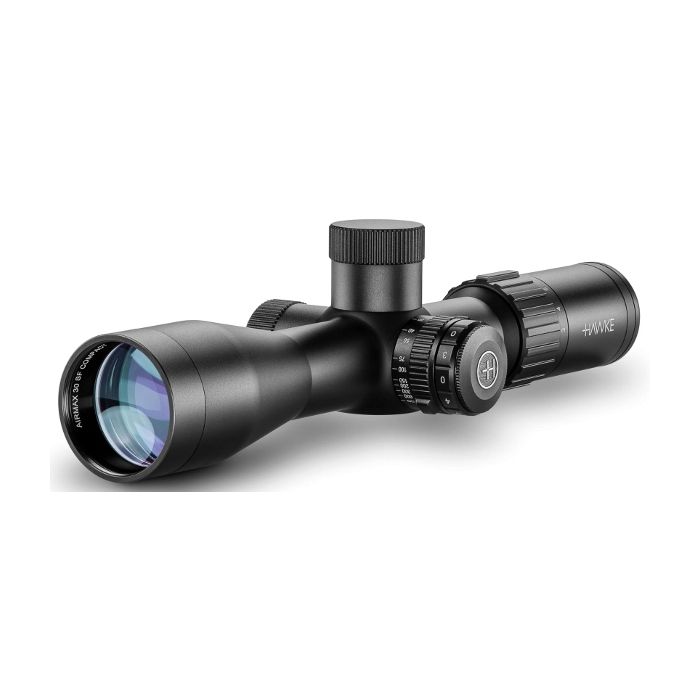

Hawke Airmax 30 SF Compact 3-12X40mm Rifle Scope - AMX IR Reticle
R7,189.00
SKU
SHAWKE13200
3-12x Magnification
40mm Objective Lens
Second Focal Plane (SFP)
30mm mono-tube chassis
Manufacturer's Website
Description
The Hawke Airmax 30 SF Compact 3-12X40mm Rifle Scope - AMX IR Reticle is a Nitrogen purged, shockproof, waterproof and fog proof scope. The AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot, the Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories. This model features a High Torque Zoom Ring and H2 optics in a variety of configurations designed to suit airgun characteristics. The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 Mil spacing.
Features
- Capped target turrets
- 30mm mono-tube chassis
- Wide-angle
- Side focus
- Illumination
- 16 layers fully multi-coated lenses
- The high torque zoom ring
- Fast focus eye-bell
- AMX reticle designed for airguns
Specifications
| Length | 277mm (10.9") |
| Weight | 589g (20.8oz) |
| Eye Relief | 76mm (3") |
| Focus/Parallax - Side Focus | 9m - Infinity (10yds - Infinity) |
| Field Of View | 14.6 - 3.6m @100m (43.7 - 10.9ft @100yds) |
| Exit Pupil | 13.3-3.3mm (0.52-0.13") |
| Chassis | 30mm Mono-tube |
| Optical System | 3-12x |
| Objective | 40mm |
| Illumination | Red |
| Reticle | AMX IR |
| Elevation Increment | 1/10 MRAD |
| Elevation Adjustment Range | 30 MRAD |
| Windage Increment | 1/10 MRAD |
| Windage Adjustment Range | 30 MRAD |
| Material | Aluminium |
| Ocular Type | Fast Focus |
| Lens Coating | Fully Multi-Coated - 16 Layers |
| Power Selector Style | Knurled Posi-Grip |
| Focal Plane | Second Focal Plane (SFP) |
| Turret Caps | Yes |
| Turret Type | Capped Target Turrets |
| Free Shipping | No |
|---|
