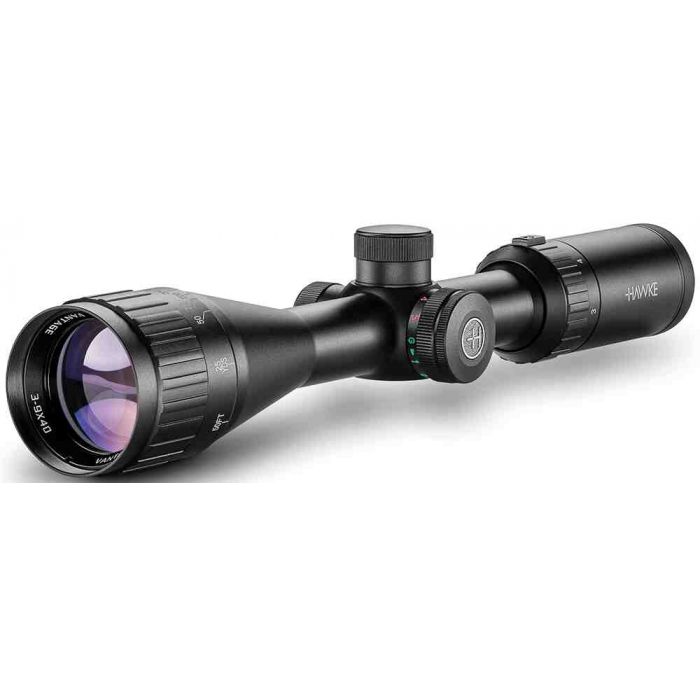

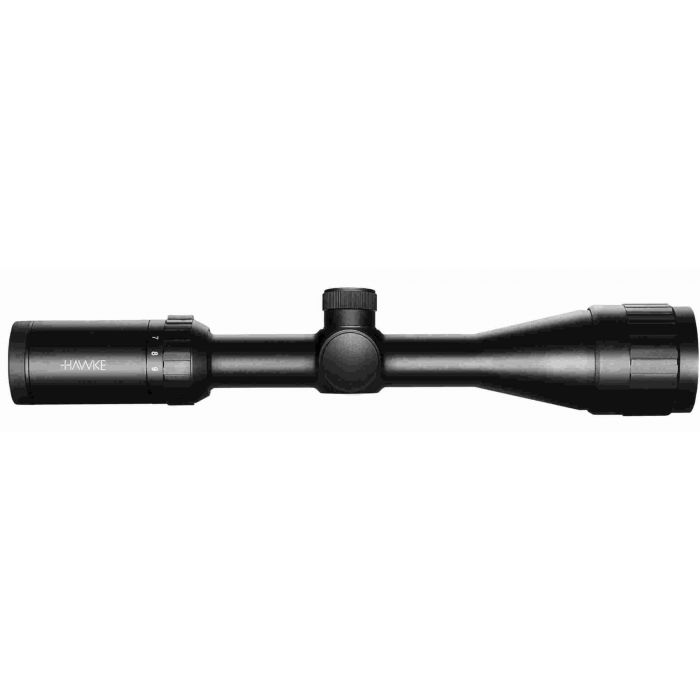

Hawke Vantage 3-9x40 AO Mil Dot IR Riflescope
3-9x Magnification
40mm Objective Lens
Second Focal Plane (SFP)
1" Mono-tube


Description
The Hawke Vantage 3-9x40 AO Riflescope - Mil Dot IR Reticle is designed as a multipurpose, utilitarian mid to long-range optic, the Hawke Optics 3-9x40 Vantage AO IR Riflescope boasts a partially-illuminated crosshair reticle with five selectable brightness levels for use in most lighting conditions in either red or green. Red is ideal for low-light conditions, while green is easier to see in bright sunlight.
The 40mm objective draws in generous amounts of light versus smaller objectives while maintaining a low-profile. Covered turrets help guard against accidental adjustments, while a fast-focus collar and knurled rheostat allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodised aluminium housing, with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof.
The classic Mil Dot features multiple aim points for hold-over and hold-under. Accurate mil spacing on 10x, featuring 4 Mil Dots in each direction. Glass etched reticle that has 5 brightness levels of illumination in both red and green, or can be turned off for a solid black reticle.

Features
- Capped Low-Profile Turrets
- 1 Inch Mono-Tube Chassis
- Adjustable Objective for Parallax Correction
- Illumination
- 11 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell
Specifications
| Length | 322mm (12.7") |
| Weight | 507g (17.9oz) |
| Eye relief | 89mm (3.5") |
| Focus/Parallax AO | 9m - Infinity (10yds - Infinity) |
| Field of View | 13-4.2m 100m (39-12.7ft 100yds) |
| Exit Pupil | 13-4mm (0.5-0.2") |
| Chassis | 1" Mono-tube |
| Optical System | 3-9x |
| Objective | 40mm |
| Illumination | Red / Green |
| Reticle | Mil Dot |
| Elevation Increment | 1/4 MOA |
| Elevation Adjustment Range | 100 MOA |
| Windage Increment | 1/4 MOA |
| Windage Adjustment Range | 100 MOA |
| Material | Aluminium |
| Ocular Type | Fast Focus |
| Lens Coating | Fully Multi-Coated - 11 Layers |
| Power Selector Style | Knurled Posi-Grip |
| Focal Plane | Second Focal Plane (SFP) |
| Turret Caps | Yes |
| Turret Type | Low Profile |
