HDCVT 1×4 HDMI 2.0 Splitter - 18Gbps
R729.00
SKU
HDVB14IH
Supports smart EDID control
Compact design for an easy and flexible installation
HDMI 2.0b, HDCP 2.2 Compliant
Description

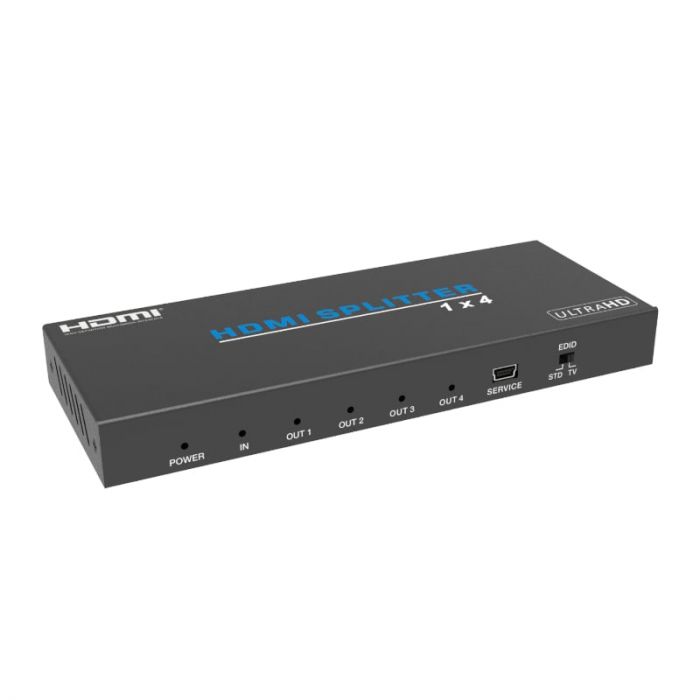

The HDCVT 1x4 HDMI 2.0 Splitter - 18Gbps is an advanced solution for splitting a single HDMI source to 4 x HDMI displays. It provides high-performance audio and video up to 4K2K@60Hz (4:4:4) and is capable of receiving, retiming and transmitting up to 18Gbps of bandwidth with no data loss. (Supporting the latest features you can be assured of reliable and high-quality HDMI distribution.)
Features
- Supports smart EDID control
- Compact design for an easy and flexible installation
- HDMI 2.0b, HDCP 2.2 Compliant
- Support video format up to 4K2K@60Hz with 8 bit RGB/YCBCR 4:4:4/YCBCR 4:2:2
- Supports 3D frame sequential video format up to 1080p@60
- Supports 3D frame sequential video format up to 4K2K@30Hz
- Supports high-resolution VESA mode video format up to QSXGA@60Hz
- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Specifications
| Chassis Material | Metal |
| Silkscreen Colour | Black |
| Power Consumption | 2W |
| Power Supply Output | DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Video Bandwidth | 600MHz/18Gbps |
| Input Port | 1x HDMI Type A (19-pin female) |
| Output Ports | 4x HDMI Type A |
| Video Resolution | 480i1080p@50/60Hz, 4K2K@24/25/30/60Hz |
| ESD Protection | Human body model 8kV (Air-gap discharge) & 4kV (Contact discharge) |
| Operating Temperature | 0C 40C |
| Storage Temperature | -20C 60C |
| Relative Humidity | 2090% RH (non-condensing) |
| Product Dimensions | 6.3 x 16.3 x 1.6 cm |
| Product Weight | 260g |
What’S In The Box:
- HDCVT 1x4 HDMI 2.0 18Gbps Splitter Black x1
- 5V/1A Power Adapter x1
- User Manual x1
