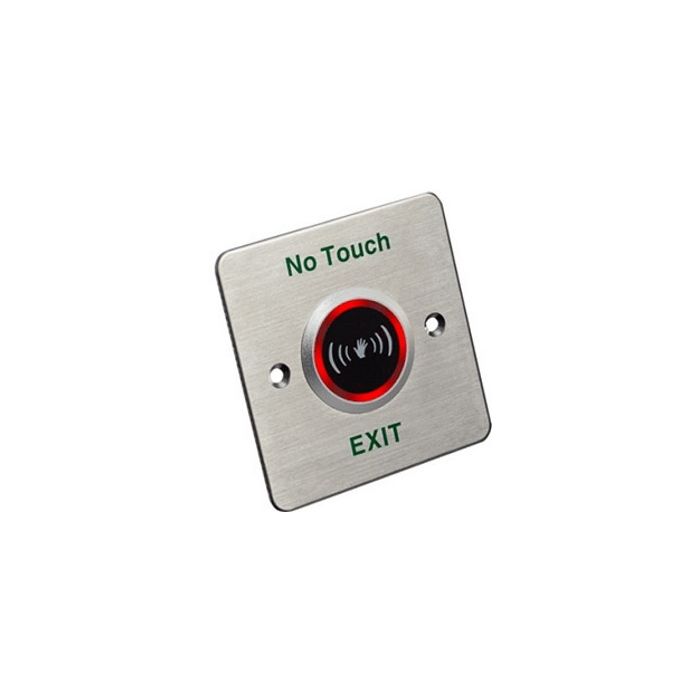

Hikvision DS-K7P03 No Touch Exit Button
R349.00
SKU
DSK7P03
Stainless steel panel
LED indicator status
Suitable for all kinds of narrow door frames
Description
The Hikvision DS-K7P03 No Touch Exit Button is suitable for all kinds of narrow door frames. Featuring a stainless steel panel and LED indicator, this product has passed the 1 million times ageing test.
Features
- Working temperature -20°C to 50°C
- Working humidity 0 to 95% (relative humidity)
- Current rating 1 A@30 VDC
- Output contact NO/NC/COM contact
- Already passed 1 million times ageing test
- Stainless steel panel
- Suitable for all kinds of narrow door frames
- Time delay: 1 to 25 s (adjustable)
- LED indicator status: green/red LED indicates working/standby
Specifications
| Dimensions | 86 mm x 86 mm x 25.7 mm |
| Input Voltage | 12 VDC |
| Working Current | 40 mA (standby), 70 mA (working) |
| Current Rating | 1 A@30 VDC |
| Output Contact | NO/NC/COM contact |
| Working Temperature | -20°C to 50°C |
| Working Humidity | 0 to 95% (relative humidity) |
| Detection Range (Adjustable) | 40 mm to 120 mm (1.57 to 4.72") |
| Time Delay | 1 to 25 s (adjustable) |
| LED Indicator Status | Green/red LED indicates working/standby |
| Product Weight | 0.2 kg |
| Free Shipping | No |
|---|
