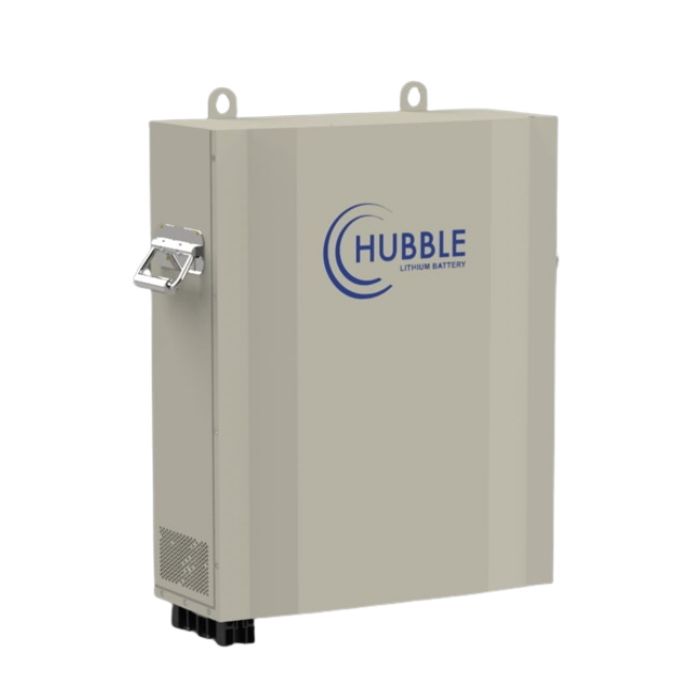

Hubble AM2 Lithium Li-Ion Battery - 51V, 5.5kW
R33,799.00
SKU
AM-2
Complete with integrated Battery Management System
Compatible with most Inverters and chargers
Low self discharge
Description
The Hubble AM2 Lithium Li-Ion Battery is a lithium pack designed to be easily wall-mounted or shelf installed in a standard rack. With the Hubble AM2 Lithium Li-Ion Battery you dont just get an easy to mount Lithium Li-Ion battery but one that has an excellent high temperature performance with a high cycle life and service life. When it comes to management the Hubble AM2 Lithium Li-Ion Battery has a built-in integrated battery management system.
Features
- Advanced BMS with current limiting function
- CAN Bus, fully integrates and communicates with leading Inverter brands
- Excellent high temperature performance
- High Cycle Life and Service Life
- RIOT integration ready for cloud monitoring
- 1C High Performance Lithium battery
- High Energy Density and conversion efficiency
- Complete with integrated Battery Management System
- Compatible with most Inverters and chargers
- Low self discharge
- Easy wall mount or shelf rack installation
- Heavy duty side handles for easy handling and mounting on the wall
- Built in protection for over-charge, over-discharge & over-temperature
Specifications
| Model | Hubble AM-2 |
| Rated Capacity (5HR) | 100 Ah |
| Nominal Voltage | 51.0 V |
| Discharge Cut-off Voltage | 42.0 V |
| Equalized Charge Voltage | 53.8 V |
| Max. Continuous Charging Current | 100A |
| Max. Continuous Discharging Current | 100A |
| C Rating | 1.0 C |
| Weight | Approx. 42Kg |
| Display | None |
| Parallel | Parallel connection up to 15 packs with full communications |
| Dimensions | 375mm x 145mm x 467mm (WxDxH) |
| Ports | 1x CAN-bus, 2x RS-485, 1x RS232 |
| Cells | New Li-ion Prismatic Cells |
| Design Life | +/- 15 years |
| Cycle Life at 1C | +/- 3000 cycle at 100% DOD, Above 6000 cycle at 50% DOD |
| Certification | CE, UN38.3, GBT31484-2015, GBY31485-2015, GBT31486-2015 |
| Outer Package Material | White Bake Lacquer steel case |
| Operating Temperature | |
| Charging | 0 to + 55 degree Celsius |
| Discharging | -20 to + 55 degree Celsius |
| Storage | -20 to + 55 degree Celsius |
| Protection | Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting |
| Free Shipping | No |
|---|
