Hubble Lithium X-101 Rack Mount Lithium Battery - 51V, 5.5kW
R34,899.00
SKU
X-101
RIOT integration ready for cloud monitoring 3
1C High Performance Linium battery
High Energy Density and conversion efficiency
Manufacturer's Website
Description

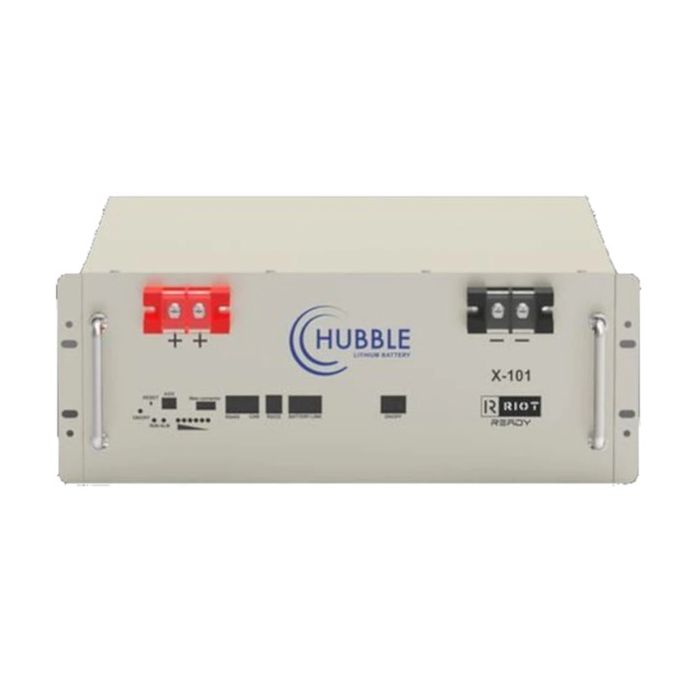

The Hubble Lithium X-101 Rack Mount Lithium Battery is a rack mounted lithium battery. The X series units fit in a standard server rack cabinet to enable high density battery configurations. The X-101 is the next generation of the popular X-100 model. The X-101 now has CAN bus built in and is a higher density using the latest cell technology and is now a 5.5KW pack.
Features
- Advanced BMS with current limiting function CAN-Bus, fully integrates and communicates with leading Inverter brands
- Excellent high temperature performance
- High Cycle Life and Service Life
- RIOT integration ready for cloud monitoring 3
- 1C High Performance Lithium battery
- High Energy Density and conversion efficiency
- Complete with integrated Battery Management System
- Compatible with most Inverters and chargers
- Low self discharge
- Installs easily in a standard server rack
- Heavy-duty handles for easy handling
- Built-in protection for over-charge, over-discharge & over-temperature
Specifications
| Model | Hubble X-101 |
| Rated Capacity (5HR) | 100Ah |
| Nominal Voltage | 51.0 V |
| Discharge Cut-off Voltage | 42.o V |
| Equalized Charge Voltage | 53.8 V |
| Max. Continuous Charging Current | 100 A |
| Max. Continuous Discharging Current | 100 A |
| C Rating | 1,0 C |
| Weight | Approx. 42 Kg |
| Display | 4 U |
| Parallel | Parallel connection up to 15 packs with full communications |
| Dimensions | 422mm x 495mm x 177.5mm (WxDxH) |
| Ports | 1z CAN-bus, 2s RS-485 Battery Link ports 1x RS232 |
| Cells | New Li-ion Prismatic cells |
| Design Life | +/- 15 years |
| Cycle Life at 1C | +/- 3000 Cycles at 100% DOD, Above 6000 cycles at 50% DOD |
| Certification | CE, UN38.3, GBT314840-2015, GBT31485-2015, GBT31486-2015 |
| Outer Package Material | White bake Lacquer steel case |
| Operating Temperature | |
| Charging | 0 to +50 degrees Celsius |
| Discharging | -10 to + 50 degree Celsius |
| Storage | -10 to 55 degree Celsius |
| Protection | Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting |
| Hubble Cloud link Ready | Yes |
| Parallel | Up to 15 units per string |
| Free Shipping | No |
|---|
