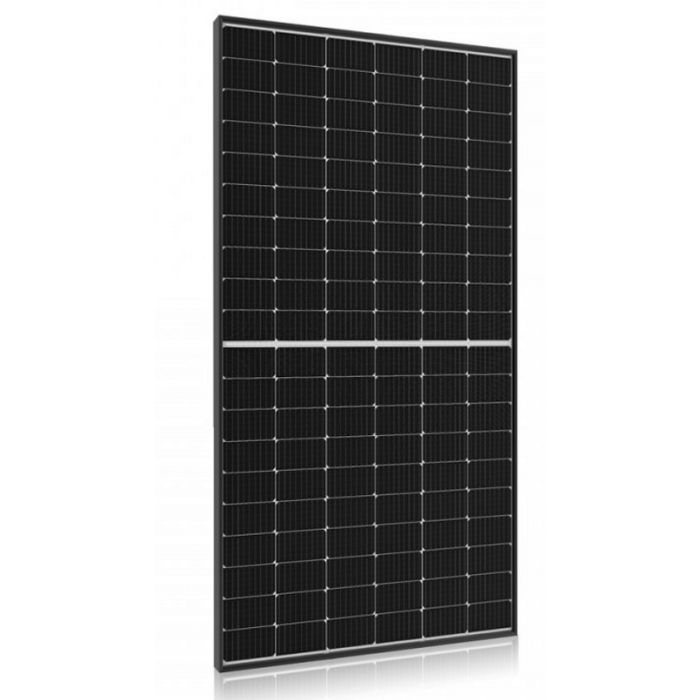

IBC MonoSol 370 MS-HC Monocrystalline Solar Panel - 370W, 1 Piece
R3,949.00
SKU
2002800075
Shipping restrictions apply.
Manufacturer's Website
Description
The IBC MonoSol 370 MS-HC Monocrystalline Solar Panel - 370W, 1 Piece features high output power, low shading effect, lower coefficient, better mechanical loading tolerance and a 20.3% module efficiency. IBC SOLAR AG has had a successful presence in the photovoltaic market for more than 35 years and is one of the leading international energy companies providing high-performance system solutions in every size and for every application.
The solar panel works when the sun shines onto a solar panel, energy from the sunlight is absorbed by the PV cells in the panel. This energy creates electrical charges that move in response to an internal electrical field in the cell, causing electricity to flow. This solar panel is high quality and very efficient.
Features
- Monocrystalline cells
- High output power
- Low shading effect
- Lower temperature coefficient
- Better mechanical loading tolerance
- lower resistive loss
- 20.3% Module efficiency
Specifications
| STC Power Pmax (Wp) | 370 |
| STC Nominal Voltage Umpp (V) | 34.36 |
| STC Nominal Current Impp (A) | 10.77 |
| STC Open Circuit Voltage Uoc (V) | 40.94 |
| STC Short Circuit Current Isc (A) | 11.5 |
| Module Efficiency (%) | 20.3 |
| Power Tolerance (Wp) | 0/+3% |
| 800 W/m2 NOCT AM 1.5 Power Pmax (Wp) | 275 |
| 800 W/m2 NOCT AM 1.5 Nominal Voltage Umpp (V) | 31.57 |
| 800 W/m2 NOCT AM 1.5 Open Circuit Voltage Uoc (V) | 38.56 |
| 800 W/m2 NOCT AM 1.5 Short Circuit Current Isc (A) | 9.29 |
| Relative Efficiency Reduction at 200 W/m2 (%) | 3.0 |
| NOCT | 45-Degrees Celsuis |
| Tempcoeff Isc (%/C) | +0.048 |
| Tempcoeff Voc (mV/C) | -118.73 |
| Tempcoeff Pmpp (%/C) | -0.35 |
| Max. System Voltage (V) | 1500 |
| Application Class | A |
| Reverse Current Ir (A) | 20 |
| Current value string fuse (A) | 20 |
| Fuse Protection From Parallel Strings | 2 |
| Dimensions (L x W x H) | 1756 x 1039 x 30mm |
| Weight (kg) | 21 |
| Max. Test load, Push/Pull (Pa) | 5400/2400 |
| Max. Design load2, Push/Pull (Pa) | 3600/1600 |
| Front Sheet (mm) | 3.2 (low-iron photovoltaic glass and anti-reflective coating) |
| Frame | Anodized aluminium, sturdy hollow-chamber frame |
| Cells | 12 x 10 mono-crystalline silicon cells |
| Connection Type | EVO2 |
| Certification | IEC 61215, IEC 61730-1/-2, ISO 9001, ISO 14001, OHSAS 18001 |
| Free Shipping | No |
|---|
