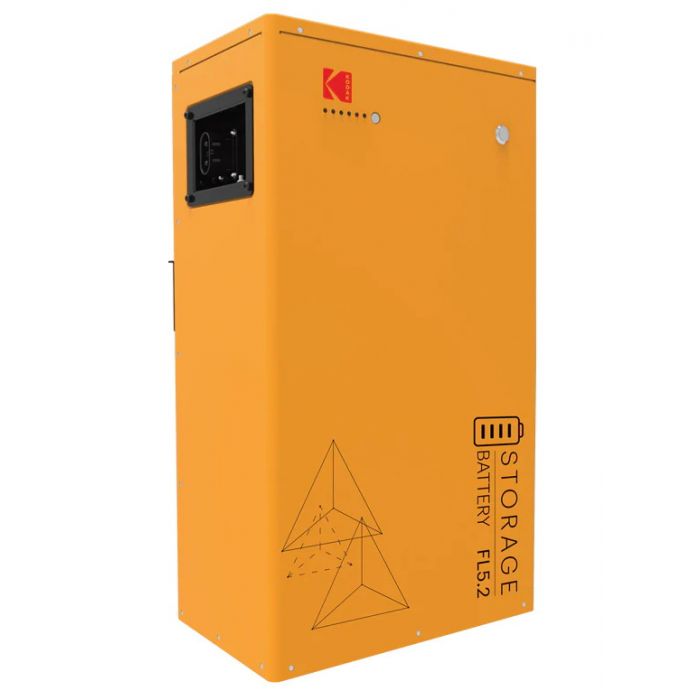

Kodak Solar Battery Storage FL5.2 - 5.12kWh
R40,299.00
SKU
FL521
Description
The Kodak Solar Battery Storage FL5.2 is a high-performance, scalable battery storage module. The modular it suitable for a broad range of storage applications. Additional batteries can be installed in parallel, allowing for a maximum storage capacity of 20.48kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.
Features
- 5.12kwh capacity
- Scalable to 20.48kwh
- 90% depth of discharge
- >6000 life cycles
- Can/rs485 communication
Specifications
| Nominal Capacity | 5.12 Kwh |
| Nominal Voltage | 51.2 V |
| Operating Voltage Range | 44.5 - 58.2 V |
| Depth Of Discharge | 90% |
| Roundtrip Efficiency | >99% |
| Nominal Discharge Current | 100 A |
| Nominal Charge Current | 100 A |
| Max. Charge Current (30S) | 105 A |
| Max. Discharge Current(30S) | 150 A |
| Charge/Discharge Efficiency | 98% |
| Operating Temperature | -10 - 50C |
| Storage Temperature | -20 - 60C |
| Humidity | 4% to 100% condensing |
| Protection Level | IP21 |
| Cycle Life | 6000 |
| Safety | CE, RCM, TUV (IEC62619) UL1973, ROHS |
| Emc | IEC-61000-6-1/3 |
| Un Number | UN3840 |
| Weight (Kg) | 49 |
| Dimensions (Hwd) (Mm) | 600342207 |
| Free Shipping | No |
|---|
