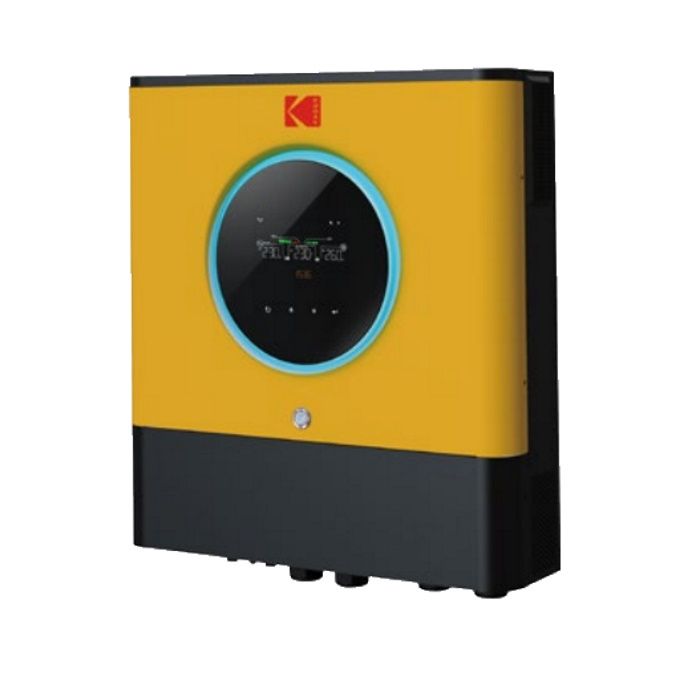

Kodak Solar Off-Grid Inverter - 10KW
R26,999.00
SKU
OG10
10kW rated power
48 VDC Battery Voltage
Maximum Charge Current of 150 A
10kW max PV array power
Description
The Kodak Single Phase Solar Off-Grid Inverter - 10Kw is the latest in the range of the KODAK OG products. With an intense 10,000W of capacity, it can easily take an average house off of the grid.
The inverter comes with a large coloured LCD display. The best feature about this inverter is it has built-in Wi-Fi for online mobile monitoring, this allows you to monitor your inverter from any location and be able to adjust any settings. The dual MPPT's will ensure you get optimal solar production. Now things tend to get dusty, but Kodak has your back with the built-in anti-dust kit as well as the built-in DC output for DC fans, LED bulbs, routers and much more.
Features
- Customizable status LED ring with RGB lights
- Touchable button with large 5" coloured LCD
- Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
- Supports USB On-the-Go function
- Reserved communication port for BMS (RS485 or RS232)
- Replaceable fan design for ease of maintenance
- Battery independent design
- Configurable AC/PV output usage timer and prioritization
- Selectable high power charging current
- Compatible to Utility Mains or generator input
- Built-in anti-dust kit
- Built-in DC output for DC fan, LED bulb, router and so on.
- Parallel operation with 6 units
Specifications
| Model | |
| Rated Power | 10000VA/10000W |
| Parallel Capability | 6 units |
| Input | |
| Voltage | 230 VAC |
| Selectable Voltage Range | 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) |
| Output | |
| Ac Voltage Regulation | 230VAC + 5% |
| Surge Power | 20000VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 15 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure sine wave |
| No Load Power Consumption | <70W |
| Max. Charger Rate | 5 minutes |
| Optiona DC Voltage | 12 VDC + 5%, 100W |
| Battery | |
| Battery Voltage | 48 VDC |
| Operation Range | 40 VDC to 61 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Solar Charger and AC Charger | |
| Solar Charger Type | MPPT |
| Number of MPP Tracker | 2 |
| Maximum PV Array Power | 10000W (5000W x 2) |
| MPP Range at Operating Voltage | 90 to 450 VDC |
| Maximum PV Array Open Circuit Voltage | 450 VDC |
| Maximum Solar Charge Current | 150 A |
| Maximum AC Charge Current | 150 A |
| Maximum Charge Current | 150 A |
| Physical | |
| Dimension | 530.8mm x 502.5mm x 158.4mm (D x W x H) |
| Net Weight | 20kg |
| Communication Interface | USB / RS232 / RS485 / Wifi /Dry-contact |
| Environment | |
| Altitude | 1000m and de-rate by 1% for every 100m above 1000m |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10C to 50C |
| Storage Temperature | -15C to 60C |
| Noise Level | <60dB |
| Free Shipping | No |
|---|
