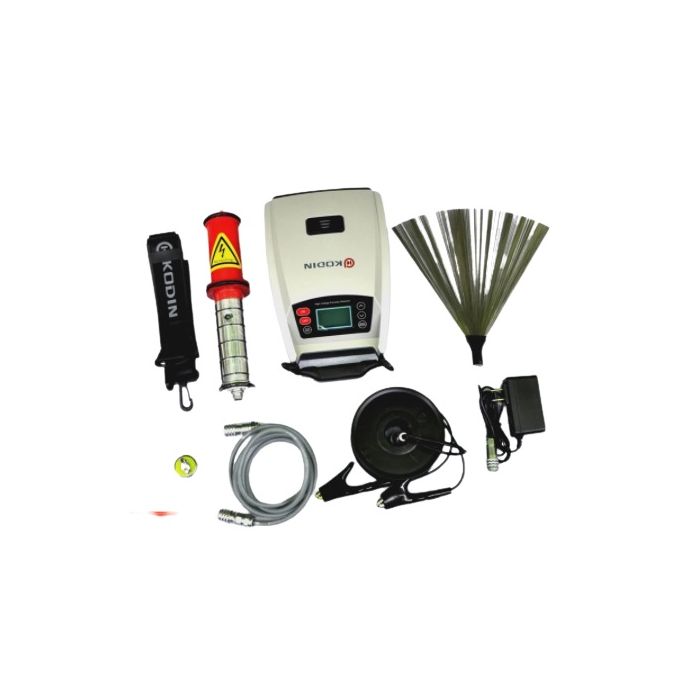

Kodin Spark Leakage Detector

Description

The Kodin Spark Leakage Detector is a new intelligent pulse high voltage instrument, adopt high anti-interference intelligent chip, high anti-interference LCD screen and brand-new digital control circuit, making the instrument high voltage output more accurate + (0.1KV+3% readings), the operation is more intelligent and humane. This instrument can be used for different thickness of glass, glass fiber reinforced plastics, epoxy coal tar and rubber lining coating, to carry out quality inspection. When the quality of the anti-corrosive coating is in doubt, such as pinholes, bubbles, cracks and cracks, the instrument will give off a bright electric spark, sound and light alarm at the same time. Because it is powered by NiMH batteries, small and light in weight, therefore, it is especially suitable for field operation. The instrument is advanced in design, stable and reliable, it can be widely used in chemical, petroleum, rubber and enamel industries. It is a necessary tool for checking the quality of metal corrosion resistant coatings.

Features

• 0.5KV-30KV Full range high voltage generator
• Accurate and steady measuring voltage is acquired by software intelligent control, ensure that the display voltage is the test voltage, voltage accuracy 0.1KV+3% reading
• Suitable measuring voltages can be automatically output based on the material and thickness of the coating
• High pressure safety switch, high voltage start with bright LED alarm prompt and icon display on screen, protects users from spark damage
• When pore is detected, in addition to edm, the instrument will also send out audible and visual alarm signals, and accurately record the needle hole number maximum 999
• You can set the limit of the number of pinholes, exceed the pinhole limit value, the instrument alarm automatically
• 128x64 LCD display, measuring voltage, pinhole number, battery indicator, menu and other instruments
• New modern sense of design, industrial dustproof waterproof sealing casing
• Large capacity 4000mA lithium battery ensures long working hours
• Humanized full touch panel, automatic backlight button



Specifications

Applicable test thickness	0.05-10mm
Output high voltage	0.5KV-30KV
Set voltage accuracy	0.1KV+3%readings
Display resolution	0.1KV
Battery	12V 4000mA lithium cell
Consumed power	6W Short-circuit current 0.1mA
Main Unit Dimension	240 x 170 x 90 mm3
Alarm	earphone, peak buzzer, double alarm, light alarm
