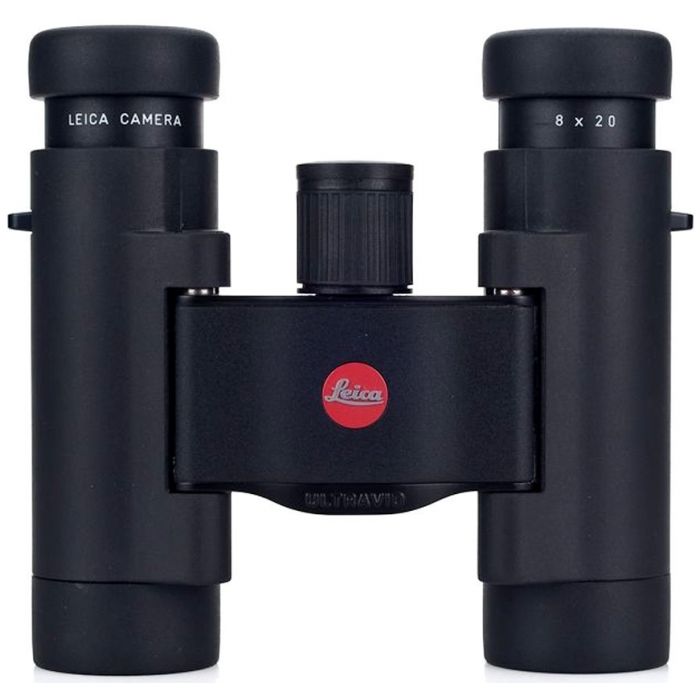

Leica Ultravid 8x20 Binocular
Dual Hinge, Center Focus Roof Prism Waterproof Fogproof


Description
One might consider the Leica Ultravid 8x20 Binocular to be the ultimate, or consummate, compact binocular. They are in fact - without a doubt - one of the finest pocket-sized optics available. These 8x20s weigh in at a mere 8 oz/230 g or so. This, combined with their nearly-negligible length of 3.6"/92mm, establishes them as leaders in the world of discrete optics. Being able to focus down to a sweet 7.2'/2.2 m opens up new viewing horizons for the lucky owner - this is a huge advantage over garden-variety binos with their so-called 'minimum' focus of 15' or more. It's true - good things definitely do come in small packages.
These Ultravids offer an outstanding magnification level of 8x, and being graced with a trim 20mm objective gives them an advantage where size is a concern - yet it's important to remember that this configuration relegates them for use in well lit conditions.
The spectacular optical performance of this fine binocular starts with extremely high-quality roof prisms that are fine-tuned with phase-correcting P40 coatings and the High-Lux System. Each of the 6 lens elements are treated with HDC coatings, and the durable aluminum housing is filled with dry nitrogen and sealed for total water and fogproof performance. In a more user-friendly manner of speaking - your view will be crisp, clear, and full of rich details.
Features
- Dual Bridge Roof Prism; Sleek profile, folds up easily, creates a pocketable footprint
- Internal Focus via central focus knob; maintains constant length when focusing
- Lenses feature HDC multicoating for optimum clarity, color, and contrast
- P40 Phase Correction eliminates roof prism phase-shift to deliver high-contrast, superbly defined images
- Water and Fogproof; Nitrogen filled housing: guards against internal fogging with sudden temperature changes
- HighLux-System - this minimizes stray light while increasing light-throughput for crisp high-contrast images
Specifications
| Delivery scope | Woven carrying strap, eyepiece cover, Cordura case with belt loop |
| Magnification | 8 x |
| Front lens diameter | 20 mm |
| Exit pupil | 2.5 mm |
| Twilight factor | 12.7 |
| Field of view at 1,000 m | 110 m |
| Field of view at 1,000 yds | 341 ft |
| Eye-relief | 15 mm |
| Objective angle of view | 6.5° |
| Close focusing distance | approx. 1.8 m/7.2 ft |
| Diopter compensation | ± 3.5 diopters |
| Automatic diopter compensation ADC™ | yes |
| Eyepieces for eyeglass wearers | yes |
| Adjustable interpupillary distance | 34–74 mm |
| Focusing | Internal focusing via central focusing knob |
| No. of lens elements (each side) | 6, all with HDC™ coating |
| Prism system | Roof prism with phase correcting coating P40 and HighLux-System HLS™ |
| Coating | AquaDura™ |
| Watertightness | Watertight to a depth of 5 m/16.5 ft |
| Housing | Aluminum, nitrogen-filled |
| Dimensions (W x H x D) | 111 x 93 x 39 mm |
| Weight | approx. 240 g / 8.5 oz |
| Warranty | 10 years |
| Free Shipping | No |
|---|
