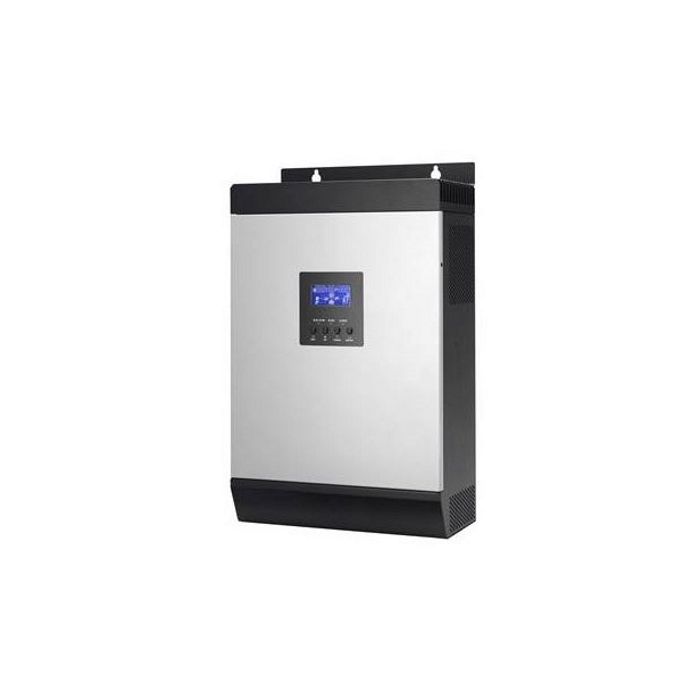

The Mecer Hybrid Inverter w/ Charger - 5000W, 48V is a pure sine wave inverter with a battery equalization function for optimized battery performance and lifecycle. It also features a built-in MPPT solar charge controller and offers a selectable input voltage range for home appliances and personal computers along with a configurable AC/Solar input priority via LCD setting.
Rated Power | 5000VA/ 5000W |
Parallel Capability | Yes, 9 units |
Input | |
Voltage | 230 VAC |
Selectable Voltage Range | 170-280 VAC (For Personal Computers), 90-280 VAC (For Home Appliances) |
Frequency Range | 50 Hz/60 Hz (Auto sensing) |
Output | |
Ac Voltage Regulation (Batt. Mode) | 230VAC +/- 5% |
Surge Power | 10000VA |
Efficiency (Peak) | 93% |
Transfer Time | 10 ms (For Personal Computers), 20 ms (For Home Appliances) |
Waveform | Pure sine wave |
Battery & Ac Charger | |
Battery Voltage | 48 VDC |
Floating Charge Voltage | 54 VDC Max: 58 VDC (Optional 64 VDC, please check with sales) |
Overcharge Protection | 60 VDC (Optional 66 VDC, please check with sales) |
Solar Charger & Ac Charger | |
Maximum PV Array Power | 4000W |
MPPT Range @ Operating Voltage | 60VDC ~115VDC |
Maximum PV Array Open Circuit Voltage | 145VDC |
Maximum Solar Charge Current | 80A |
Maximum Ac Charge Current | 60A |
Maximum Charge Current | 140A |
Maximum Efficiency | 98% |
Standby Power Consumption | 2 W |
Physical | |
Dimensions | 100mm x 272mm x 355mm |
Net Weight (Kgs) | 13.5 |
Operating Environment | |
Humidity | 5% to 95% Relative Humidity(Non-condensing) |
Operating Temperature | 0°C to 55°C |
Storage Temperature | -15°C to 60°C |
