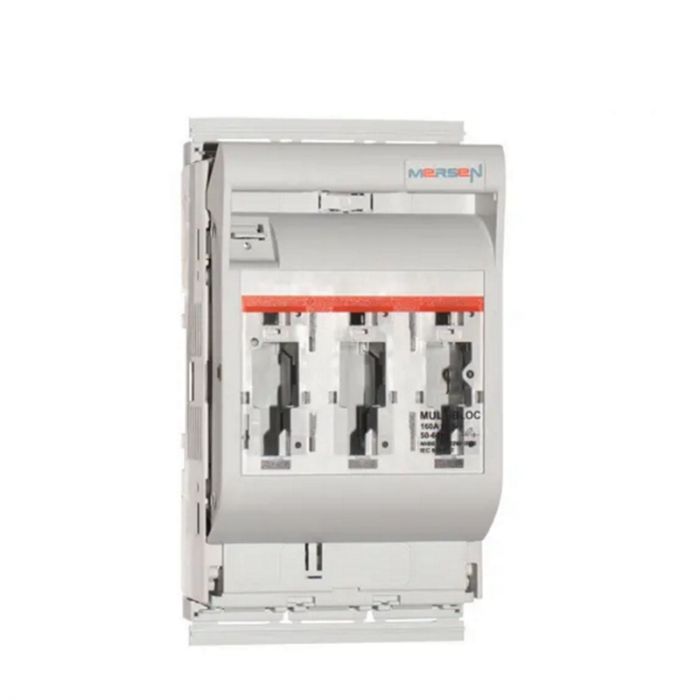

Mersen 3 pole NH1 Fuse Holder - 250A
R1,749.00
SKU
007071
Manufacturer's Website
Description
The Mersen 3 pole NH1 Fuse Holder - 250A Size High Speed AC Fuse Holder and Power Circuit Off-Load Isolator for internal panel mounting. Cable connections to take 3 x NH1 (Blade) type fuses in size DIN01. The 3 pole NH1 Fuse Holder rated for 250A Maximum continuous.
Features
- ROHS Compliant
- 250A Maximum
- Rated 690V AC to IEC
- Short Circuit Current Rating 80kA to 500V, 50kA at 200A x 690V
Specifications
| Rating | 250A Maximum continuous. |
| Voltage | Rated 690V AC to IEC |
| Short Circuit Current Rating (SCCR) | 80kA to 500V, 50kA at 200A x 690V |
| Insulation Voltage | 1000V |
| Impulse Withstand Voltage | 12kV |
| Short Circuit Withstand | 8kA /1s |
| Power Dissipation of Fuse Links | 23W maximum to maintain continuous rating. |
| Connections | via 6 x M10 terminal screws |
| Free Shipping | No |
|---|
