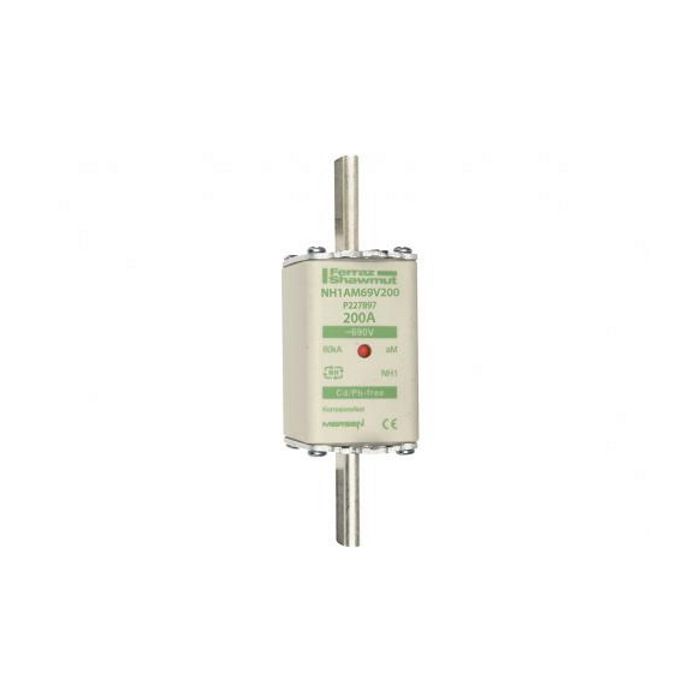

Mersen NH1AM69V200 Fuse link - 200A, 690V
R219.00
SKU
009087
Non-isolated gripping lugs
Double indicator
Lead free contact blades
0% cadmium
Manufacturer's Website
Description
The Mersen NH1 Fuse link - 200A, 690V are partial-range breaking capacity fuse-links, used to protect motor circuits as they are strongly current-limiting and have low power losses. They interrupt currents from 6.3 times In up to their maximum breaking capacity and are therefore suited for short-circuit protection only. They must be associated with other switchgear for protection against overloads. These fuse-links can have a rated current equal to the motor's nominal current.
Application:
aM: Partial purpose, motor circuit protection
Please Note:
Since the design of this system cannot guarantee non-interchangeability of rated current, it must be handled by a qualified professional.
Features
- Dimensions according to DIN 43 620 parts 1 to 4
- Non-isolated gripping lugs
- Double indicator
- Lead free contact blades
- 0% cadmium
Specifications
| Rated voltage AC (IEC) | 690v |
| Rated current In | 200A |
| Power dissipation at In | 14.2 W |
| Contact Materials | Copper, Silver-Plated |
| NH fuse-link | aM, 690VAC, size 1, 200A double indicator/live tags |
| The NH system is classified among plug-in fuse systems and is composed of | fuse-base (possibly including terminal covers and phase barriers), fuse-link with blade contact, fuse-link replacement device (LV HRC fuse puller) |
| Free Shipping | No |
|---|
