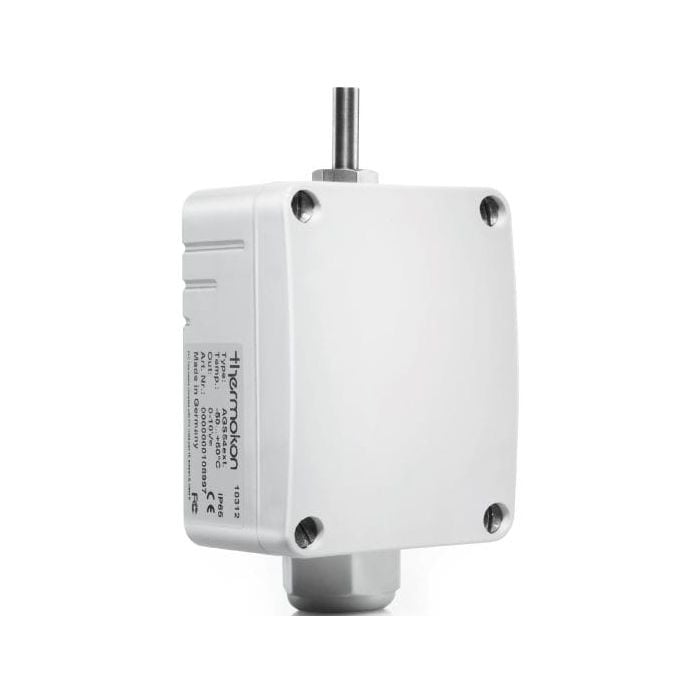

Meteo Control Ambient Temperature Sensor
R1,679.00
SKU
4400200067
Straightforward and swift assembly
Temperature and humidity measurements
Cost-effective access to outdoor temperature measurement
Description
The Meteo Control Ambient Temperature Sensor measures the ambient temperature using a PT1000 measuring resistance. The sensor can be connected directly to an analogue input of every Meteo Control data logger. the logger must be configured for resistance measurement.
Features
- Connection to meteocontrol system via PT1000 direct connection or 0...10 V depending on model
- Cost-effective access to outdoor temperature measurement
- Straightforward and swift assembly
- Connection to meteocontrol system via 4 - 20 mA signal
- Temperature and humidity measurements
- Can be combined with an irradiance protector
Specifications
| Operating temperature: | -35 C - 90 C |
| Protection class: | IP65 |
| Dimensions (W x H x D): | 50 mm x 65 mm x 45.5 mm |
| Sensor type: | PT1000 |
| Connection terminal | Screw-type, max. 1.5 mm^2 |
| Free Shipping | No |
|---|
