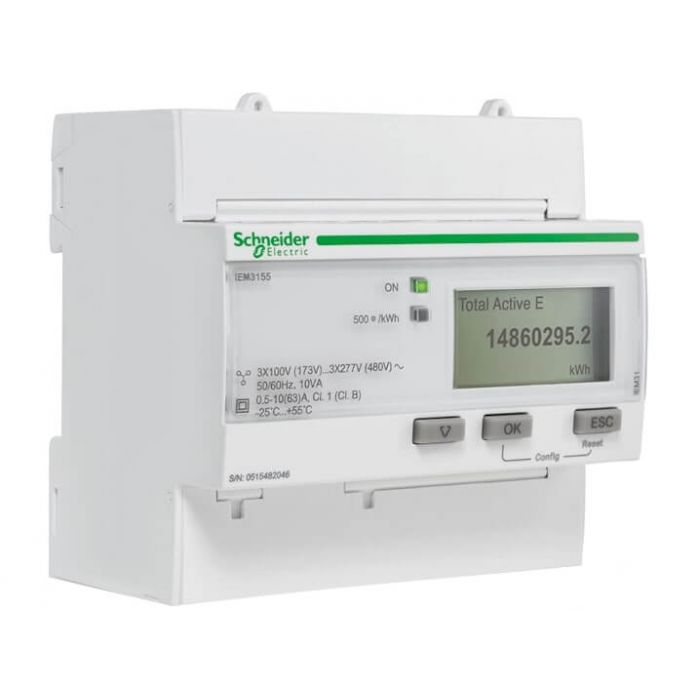

Meteo Control Schneider E-meter - IEM3155
R5,889.00
SKU
4200200015
- Multi tariff measurement
- MID approval
- Pulse output
- Display (current, voltage and power measurements)
Description
The Meteo Control Schneider E-meter offers all the essential measurement functions, for example, current, voltage and energy, that are needed for monitoring three-phase electrical installations.
Features
- Measuring voltage, current, active and reactive power, as well as active and reactive energy
- Can be used as a bidirectional meter for measuring grid feed-in and sourcing
- Multi tariff measurement
- MID approval
- Pulse output
- Display (current, voltage and power measurements)
- Communication via Modbus RTU
Specifications
| Compatibility WEB’log – IEM3155 | From meter firmware 1.08 |
| Conductor systems | 1P + N (100-277 VAC) |
| 3P (173-480 VAC) | |
| 3P + N (173-480 VAC) | |
| Current measurement range | 0.5-63 A |
| Precision class | Active power: Class B as per EN 50470-3 |
| Active power: Class 1 as per IEC 61557-12 | |
| Active power: Class 1 as per IEC 62053-21 | |
| Rated current in operation [In] | 63 A |
| Nominal voltage | 173 - 480 V |
| 100 - 277 V | |
| Grid frequency | 50 Hz / 60 Hz |
| Reference, maximum current (active power) | Iref = 10 A, Imax = 63 A |
| Startup / minimum current (active power) | Ist = 0.04 A, Imin = 0.5 A |
| Power consumption | < 10 VA at 63 A |
| Sampling rate | 32 samplings/cycle |
| Tariff input | 4 tariffs |
| Communication interface | RS485, Modbus RTU 9,600, 19,200 and 38,400 baud odd/even or no parity |
| Inputs | 1 digital input 0-5 VDC / 11-40 VDC (rated voltage 24 VDC) |
| Outputs | 1 digital output (static) 5-40 VDC < 50 mA |
| Display type | LCD display |
| Active power display range | 8 + 1 digits up to 99,999,999.9 [kWh] |
| Free Shipping | No |
|---|
