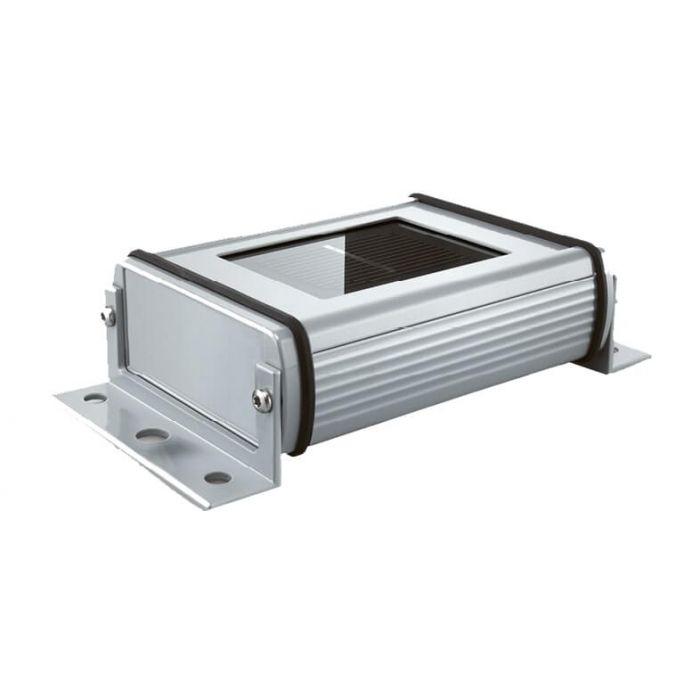

Meteo Control SI-420-TC-K Irradiance Sensor
R8,599.00
SKU
4400200170
Connection to meteocontrol system via various different interfaces
Recording of solar cell temperature
Active temperature compensation of all sensors by integrated temperature sensor
The particular sensors are available with a 3m connection cable
Description
The Meteo Control SI-420-TC-K is an irradiance sensor which absorbs solar radiation using a monocrystalline solar cell and uses it to to form a measurement signal. The output signal is 4mA to 20mA, making ideal for industrial use.
Features
- Connection to meteocontrol system via various different interfaces
- Recording of solar cell temperature
- Active temperature compensation of all sensors by integrated temperature sensor
- The particular sensors are available with a 3m connection cable
Specifications
| Solar cell | Monocrystalline silicium (50x33 mm) |
| Operating temp. | -20 - 70 C |
| Connection | 3m connecting cable |
| Casing IP rating | IP65 |
| Dimensions | 145 x 86 x 39 mm |
| Weight | 340 g |
| Linearity of circuit | +-0.3% v.M for 50 W/m^2 to 1300 W/m^2 |
| Supply voltage | 12 VDC - 28 VDC |
| Temp. compensation | Yes |
| Output signal | 4 - 20 mA |
| Current measuring shunt | 0.1 ohm / at 1V and 20 mA output |
| 0.12 ohm / at 10 V output |
| Free Shipping | No |
|---|
