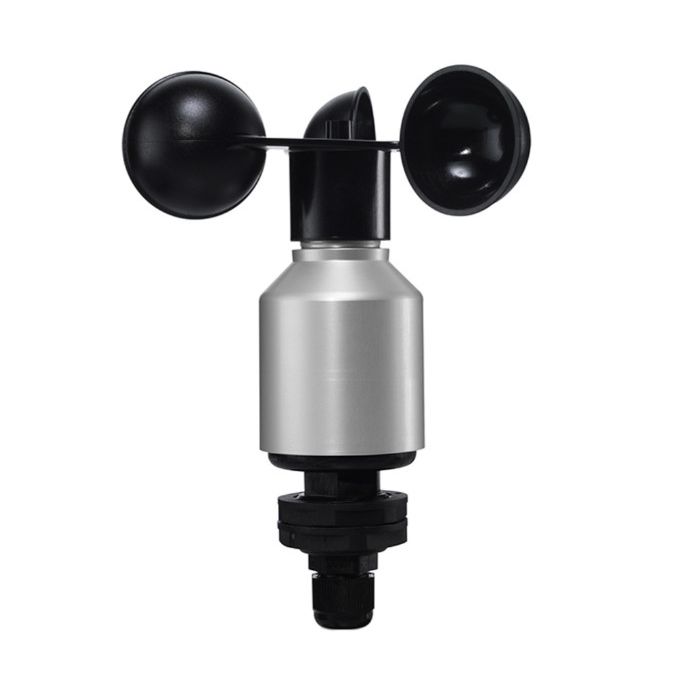

Meteocontrol Compact Wind Speed Sensor

Manufacturer's Website

Description

Introducing the Meteocontrol Compact Wind Speed Sensor. The Meteocontrol Compact Wind Speed Sensor is a highly reliable and precise instrument designed for accurate measurement of wind velocities across a broad range of environmental conditions. Its optimised starting value ensures sensitivity even at low wind speeds, making it particularly effective for applications requiring detailed wind data. Constructed with an anodised, seawater-resistant surface, the sensor is well-suited for maritime, coastal, and other harsh outdoor environments where exposure to saltwater and corrosion could compromise less resilient devices. Its unbreakable measuring element guarantees durability and long-term operational stability, providing consistent performance over years of use.

Ease of installation is a prominent feature of this wind sensor. It is designed for straightforward mounting, utilising a cable plug connection and a simple one-screw fixation method, reducing setup time and ensuring secure attachment to masts or other structures. The sensor's robust construction allows it to operate effectively in winter conditions, with a wide temperature application range from -40C to +70C, making it suitable for use in cold climates and high-altitude locations. Its resilient design ensures reliable performance regardless of seasonal or weather-related challenges, providing continuous wind data essential for meteorological, climate research, or wind energy applications.

Technical specifications highlight the sensors high accuracy and resolution. It measures wind speeds from 0.5 to 50 meters per second, with an accuracy of 0.5 m/s or 3% of the measurement value, ensuring precise data collection. The resolution is less than 0.1 m/s, which allows for detailed analysis of wind fluctuations. The sensor operates on a power supply voltage of 9 to 30 V DC or 24 V AC, with a total power consumption of approximately 21.5 W, including a built-in heater that consumes 20 W to prevent icing in freezing conditions. It features a standard analogue output of 420 mA, with a maximum resistance of 500 ohms, enabling integration with various data loggers and monitoring systems.

The device's measurement signals are recorded as current measurements under the designation WVx, with a gradient of 3.09375 and an offset of -11.875, expressed in meters per second. The measurement interface is designed for robust data logging, with a UV-resistant cable of 12 meters in length, facilitating flexible installation options. Certified with CE, the wind sensor meets international safety and quality standards, ensuring trustworthiness and regulatory compliance. Its compact dimensions of 135 mm x 165 mm and a weight of only 0.75 kg make it a practical choice for deployment in diverse environments, from research stations to wind farm sites, where reliable, high-precision wind data is essential.

Features

• Low, optimised starting value and high accuracy
• Anodised, seawater resistant surface
• Unbreakable measuring element for long-term use
• Easy mounting due to cable plug connection and one-screw fixation
• Suitable for winter use and with a wide temperature application range
