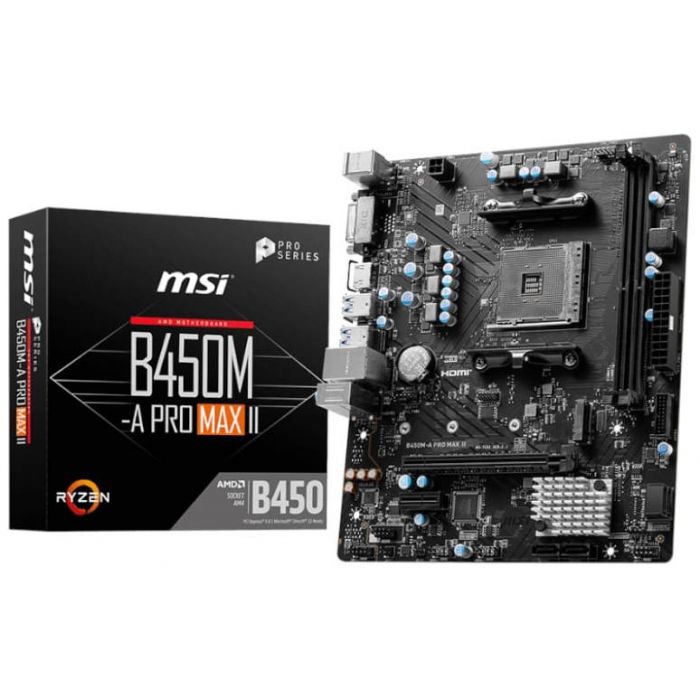

MSI B450M-APRO MAX II AMD AM4 MATX Gaming Motherboard
R1,509.00
SKU
B450MAPROMAXII
Supports ddr4 memory up to 4133 (oc) mhz
Turbo m.2 running at pci-e gen3 x4
Audio boost studio-grade sound quality
X-boost software
Description
Introducing the MSI B450M-APRO MAX II AMD AM4 MATX Gaming Motherboard. The MSI B450M-A Pro Max II motherboard provides lightning-fast system boot-up, application, and game loading. Turbo M.2 is more than 5 times faster than a regular SATA III connection, with speeds up to 32 GB/s per device using Gen3 x4.
Core Boost is the most recent upgrade to MSIs motherboard CPU power delivery system. A reserved zone of premium power delivery components on an optimised circuit design results in a highly efficient power system that can output precise current to the CPU.
Reward your ears with studio-quality sound. MSI Audio Boost produces the best sound possible by utilising high-quality audio components. This allows you to enjoy stunning, studio-quality sound for the most immersive audio experience. For clever business solutions, PRO Series motherboards combine stable functionality and high-quality assembly. PRO Series motherboards are designed to meet any professional workflow, making life easier for businesses and office use.
Features
- Supports ddr4 memory up to 4133 (oc) mhz
- Turbo m.2 running at pci-e gen3 x4
- Audio boost studio-grade sound quality
- X-boost software
- Core boost with premium layout and fully digital power design to support more cores and provide better performance
- Supports 1st, 2nd and 3rd gen amd ryzen / ryzen with radeon vega graphics, 2nd gen amd ryzenwith radeon graphics / athlon with radeon vega graphics and a-series / athlon x4 desktop processors for socket am4
Specifications
| Socket | AM4 |
| Cpu Support: | |
| Supports | 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics |
| Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4 | |
| Chipset | AMD B450 |
| Ddr4 Memory | DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE), 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) |
| Memory Channel | Dual-Channel DDR4 |
| Dimm Slots | 2 |
| Max Memory (Gb) | 64 |
| Pci-E Gen | Gen3 |
| Pci-E X16 | 1 |
| Pci-E X1 | 1 |
| Sata Iii | 4 |
| M.2 Slot | 1 |
| Tpm (Header) | 1 |
| Usb 3.2 Ports (Front) | 2 (Gen1, Type A) |
| Usb 3.2 Ports (Rear) | 4 (Gen1, Type A) |
| Usb 2.0 Ports (Front) | 4 |
| Usb 2.0 Ports (Rear) | 2 |
| Serial Ports (Front) | 1 |
| Lan Port (Rear) | Realtek 8125 2.5Gigabit LAN controller |
| Audio Ports (Rear) | Realtek ALC897 Codec |
| Dvi-D | 1 |
| Hdmi | 1 |
| Directx | 12 |
| Form Factor | m-ATX |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Weight | 1658 g |
| Dimensions | 26 x 5.2 x 26 cm |
| Brand | MSI |
| Warranty | 36 Months |
| Cpu Socket | AM4 |
| Form Factor | M-ATX |
| Dimm Slots | 2 |
| Memory Generation | DDR4 |
| Memory Clock Speed | 4133MHz |
| Memory Capacity | 64GB |
Package Contents
- 1x msi b450m-a pro max ii amd am4 matx gaming motherboard - black
- 1x driver dvd
- 1x i/o shield
- 2x sata cable
- 1x quick install guide
