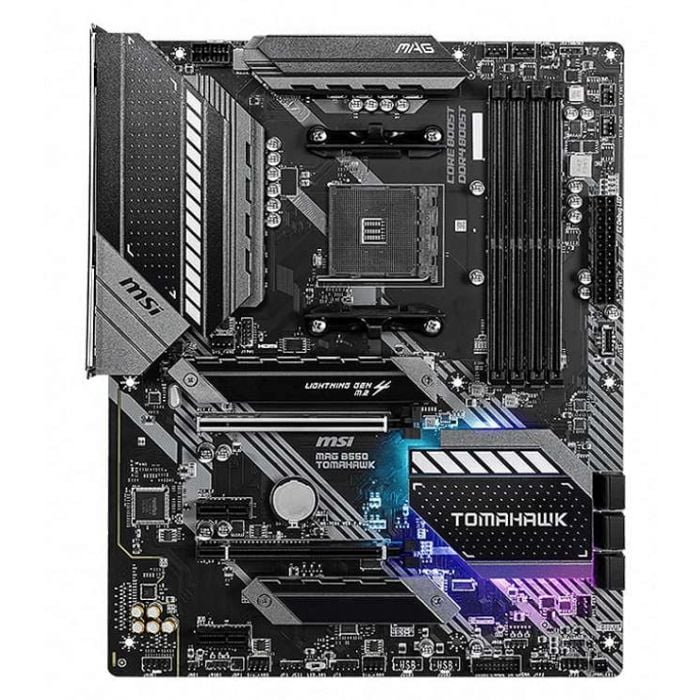

MSI B550 TOMAHAWK AMD AM4 ATX Gaming Motherboard - Black


Description
The MSI B550 TOMAHAWK AMD AM4 ATX Gaming Motherboard - Black was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface, making it the best choice for entry level gamers. With more cores' processors, thermal and power design is more important to make sure the temperature keeps lower.
MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards. High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand, no matter whether you're a gamer, prosumer, or PC enthusiast. Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
Features
- Core boost technology
- Digital PWM
- 6 layer PCB with 2oz thickened copper
- PCIe steel Armour
- Supports 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update
- DDR4 Memory, up to 5100+(OC) MHz
- PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
- Extended Heatsink Design
- 10+2+1 Duet Rail Power System
- Digital PWM
- DDR4 Boost
- Onboard 2.5G LAN plus Gigabit LAN with LAN Manager
- 16.8 million colours/29 effects controlled in one click
- Pre-installed I/O Shielding
- Audio Boost
Specifications
| Socket | AM4 |
| CPU (Max Support) | RYZEN 9 |
| Chipset | AMD B550 Chipset |
| DDR4 Memory | 5100(OC)/ 5000(OC)/ 4866(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 128 |
| PCI-E x16 | 2 |
| PCI-E x1 | 2 |
| SATAIII | 6 |
| M.2 Slot | 2 |
| RAID | 0/1/10 |
| LAN | 1x Realtek RTL8125B 2.5G LAN + 1x Realtek RTL8111H 1G LAN |
| USB 3.2 ports (Front) | 1(Gen 1, Type C), 2(Gen 1, Type A) |
| USB 3.2 ports (Rear) | 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 ports (Front) | 4 |
| USB 2.0 ports (Rear) | 2 |
| Audio ports (Rear) | 5+ Optical S/PDIF (Realtek ALC1200 Codec) |
| DisplayPort | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | ATX |
| CrossFire | Yes |
| Operating System | Support for Windows 10 64-bit |
| Free Shipping | No |
|---|
