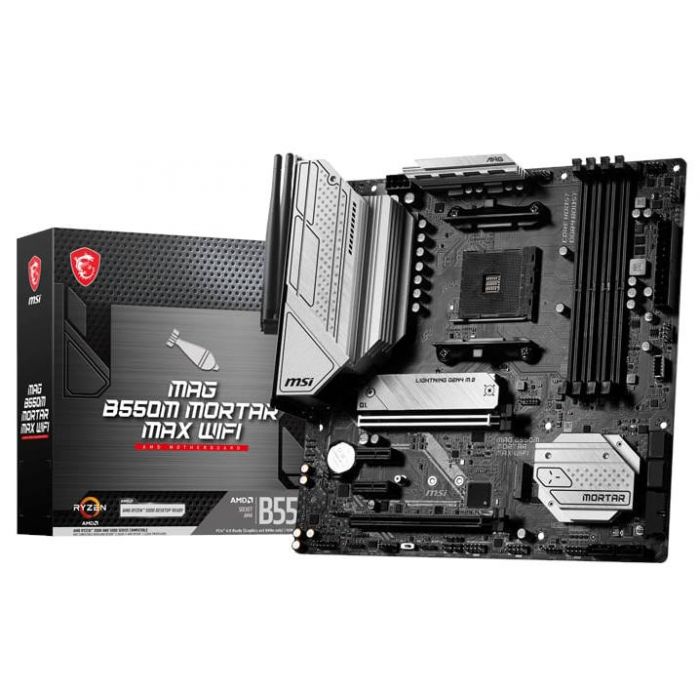

MSI B550M MORTAR MAX WIFI AMD AM4 M-ATX Gaming Motherboard
R5,329.00
SKU
MAGB550MMAXMORTARWIFI
Supports ddr4 memory, up to 4400+(oc) mhz
Pcie 4.0, lightning gen 4 x4 m.2
M.2 shield frozr
Amd turbo usb 3.2 gen 2
Description
Introducing the MSI B550M MORTAR MAX WIFI AMD AM4 M-ATX Gaming Motherboard. The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry-level gamers. With years of experience, MSI is no stranger to building high-performance motherboards. MSIs R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions.
Designed to support the most popular All-In-One & customised water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked keep-out-zone allows for easy and safe installation and a perfect fit. High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or PC enthusiast.
Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immersive one. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
Features
- Supports ddr4 memory, up to 4400+(oc) mhz
- Pcie 4.0, lightning gen 4 x4 m.2
- M.2 shield frozr
- Amd turbo usb 3.2 gen 2
- Premium thermal solution extended heatsink design
- Enhanced power design 8+2+1 duet rail power system
- Digital pwm, core boost, ddr4 boost.
- 2.5g lan with lan manager and amd wi-fi 6e solution: upgraded network solution for professional and multimedia use. delivers a secure, stable and fast network connection.
- Pre-installed i/o shield: better emi protection and more convenience for installation.
- Audio boost: reward your ears with the studio-grade sound quality for the most immersive gaming experience.
- Multi-gpu: with steel armor pci-e slots. supports amd crossfire
- Supports amd ryzen 5000 series, 5000 g-series, 4000g-series, and 3000 series processors
Specifications
| Cpu (Max Support) | Ryzen 9 |
| Socket | AM4 |
| Chipset | AMD B550 Chipset |
| Ddr4 Memory | 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC) |
| 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz | |
| Memory Channel | Dual |
| Dimm Slots | 4 |
| Max Memory (Gb) | 128 |
| Pci-E X16 | 2 |
| Pci-E X1 | 2 |
| Sataiii | 6 |
| M.2 Slot | 2 |
| Raid | 0/1/10 |
| Lan | 1x Realtek RTL8125B 2.5G LAN |
| Wi-Fi & Bluetooth | AMD Wi-Fi 6E |
| Usb 3.2 Ports (Front) | 1 (Gen 1, Type C), 2(Gen 1, Type A) |
| Usb 3.2 Ports (Rear) | 1 (Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A) |
| Usb 2.0 Ports (Front) | 4 |
| Usb 2.0 Ports (Rear) | 2 |
| Audio Ports (Rear) | 5+ Optical S/PDIF (Realtek ALC1200/ALC1220P Codec) |
| Displayport | 1 |
| Hdmi | 1 |
| Directx | 12 |
| Crossfire | Yes |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro-ATX |
| Weight | 1451 g |
| Dimensions | 24.5 x 7 x 27 cm |
| Brand | MSI |
| Warranty | 36 Months |
| Colour | Black |
| Cpu Socket | AM4 |
| Form Factor | M-ATX |
| Dimm Slots | 4 |
| Memory Generation | DDR4 |
| Memory Clock Speed | 4400MHz+(OC) |
| Memory Capacity | 128GB |
Package Contents
- 1x msi mag b550m mortar max wifi am4 matx gaming motherboard - black
- 2x sata cables
- 2x wi-fi antenna
- 1x driver dvd
- 1x mag stickers
- 1x quick installation guide
