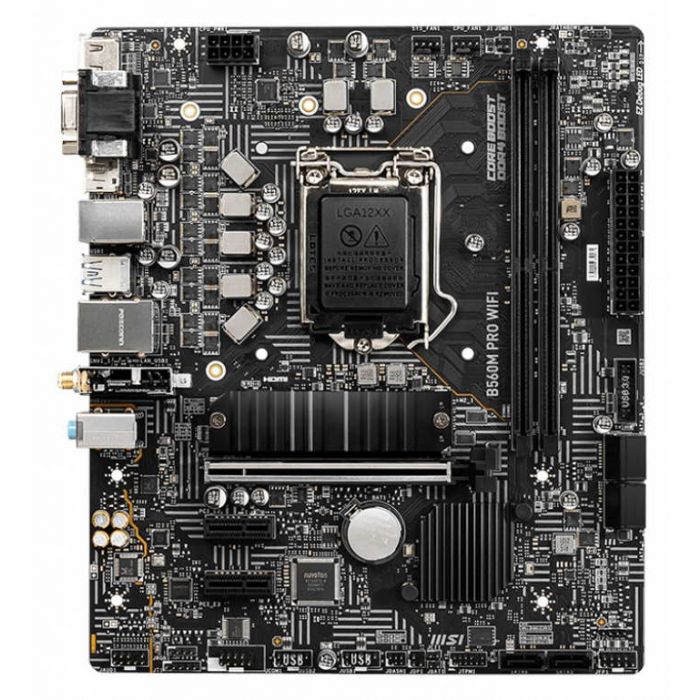

MSI B560M Pro WIFI Intel LGA1200 M-ATX Gaming Motherboard - Black
R2,659.00
SKU
B560MPROWIFI
Manufacturer's Website
Description
The MSI B560M Pro WIFI Intel LGA1200 M-ATX Gaming Motherboard - Black help users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows, but also less troubleshooting and longevity.
MSI motherboards feature tons of convenient and smart design options for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. This makes it easy to install your own motherboard without any issue.
The world's fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
The most important thing about DIY is expandability. MSI PRO motherboards feature plenty of possibilities for prosumers' needs. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility. 2.5Gbps LAN provides incredible data transfer speed, faster than general Gigabit LAN. This is a premium solution for demanding users.
MSI PRO Series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.
Features
- Supports 10th Gen processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5200(OC) MHz
- Core Boost
- DDR4 Boost
- PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution
- Audio Boost
- Steel Armour
- MSI M.2 auto switch
Specifications
| CPU (Max Support) | i9 |
| Socket | 1200 |
| Chipset | Intel B560 Chipset |
| DDR4 Memory | 5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz |
| Memory Channel | Dual |
| Dimm Slots | 2 |
| Max Memory (GB) | 64 |
| PCI-E x16 | 1 |
| PCI-E Gen | Gen4 |
| PCI-E x1 | 2 |
| SATAIII | 6 |
| M.2 Slot | 1 |
| TPM (Header) | 1 |
| LAN | 1x Realtek 8125B 2.5Gbps LAN controller |
| Wi-Fi & Bluetooth | Intel Wi-Fi 6 AX201, Bluetooth 5.1 |
| USB 3.2 Ports (Front) | 2(Gen 1, Type A) |
| USB 3.2 Ports (Rear) | 4(Gen 1, Type A) |
| USB 2.0 Ports (Front) | 4 |
| USB 2.0 Ports (Rear) | 2 |
| Serial Ports (Rear) | 1 |
| Audio Ports (Rear) | Realtek ALC897 Codec |
| DisplayPort | 1 |
| VGA | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | M-ATX |
| Operating System | Support for Windows 10 64-bit |
| Free Shipping | No |
|---|
