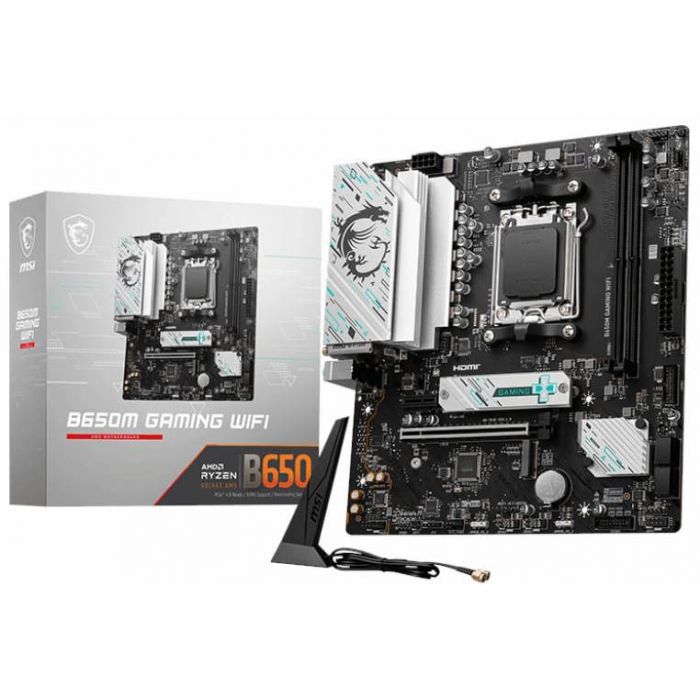

MSI B650M GAMING WIFI AMD AM5 mATX Gaming Motherboard
R4,079.00
SKU
B650MGAMINGWIFI
Supports amd ryzentm 8000 and 7000 series desktop processors
Supports ddr5 memory, up to 7800+ (oc) mhz
Core boost with premium layout and digital power design
Memory boost advanced technology
Description
Introducing the MSI B650M GAMING WIFI AMD AM5 mATX Gaming Motherboard. B650M GAMING WIFI is designed with tonnes of connectivity, flexible tools, and a convenient Wi-Fi solution with a DDR5 memory version for gamers who want it all.
This is a huge step in DDR performance enhancement with the latest DDR5 memory. With a dedicated SMT welding process and MSI Memory Boost technology, B650M GAMING Wi-Fi is ready to deliver world-class memory performance. The advanced SMT (Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. With exclusive Memory Boost technology, MSI motherboards deliver a clean and pure high-frequency DDR5 signal.
Core Boost technology utilises MSIs premium layout and optimised power design to deliver CPU current with increased speed and precision. The software supports multicore CPUs and optimises CPU overclocking. MSI B650M GAMING Wi-Fi series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster, and have a real advantage over your enemies. MSI B650M GAMING Wi-Fi series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies
Features
- Supports AMD Ryzen 8000 and 7000 series desktop processors
- Supports ddr5 memory, up to 7800+ (oc) mhz
- Core boost with premium layout and digital power design
- Memory boost advanced technology
- Pcie 4.0 slot, lightning gen4 m.2
- Steel armour protection
- Audio boom studio-grade sound quality
- High-quality pcb 6-layer pcb made by 2 oz. thickened copper
Specifications
| Socket | AM5 |
| Cpu Support | Supports AMD RyzenTM 8000/7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Ddr5 Memory | DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Max. Overclocking Frequency | 1DPC 1R Max speed up to 7800+ MHz 1DPC 2R Max speed up to 6400+ MHz |
| Memory Channel | Dual-Channel DDR5 |
| Dimm Slots | 2 |
| Max Memory (Gb) | 128GB |
| Pci-E X16 | 1 |
| Pci-E X1 | 2 |
| Sata 6G | 4 |
| M.2 Slot | 2 |
| Raid | 0/1/10 |
| Lan | Realtek 8125BG 2.5G LAN |
| Tpm Pin Header (Support Tpm 2.0) | 1 |
| Usb 2.0 (Rear) | 2 |
| Usb 2.0 (Front) | 4 |
| Usb 5Gbps Type A (Rear) | 3 |
| Usb 5Gbps Type C (Rear) | 1 |
| Usb 5Gbps Type A (Front) | 4 |
| Audio Ports (Rear) | 7.1-Channel High Definition Audio, Realtek RTL8125BG 2.5Gbps LAN |
| Wifi | AMD Wi-Fi 6E |
| Bluetooth | 5.3 |
| Hdmi | 1 |
| Displayport | 1 |
| Directx | 12 |
| Form Factor | mATX |
| Operating System | Support for Windows 11 64-bit and Windows 10 64-bit |
| Weight | 1244 g |
| Dimensions | 28.5 x 7.2 x 27.2 cm |
| Brand | MSI |
| Warranty | 36 Months |
| Cpu Socket | AM5 |
| Form Factor | M-ATX |
| Dimm Slots | 2 |
| Memory Generation | DDR5 |
| Memory Clock Speed | 7800MHz+(OC) |
| Memory Capacity | 128GB |
Package Contents
- 1x msi b650m gaming wifi amd am5 matx gaming motherboard, black
- 1x i/o shield
- 1x sata cable
- 1x ez m.2 clips
- 1x wifi antenna
- 1x quick install guide
