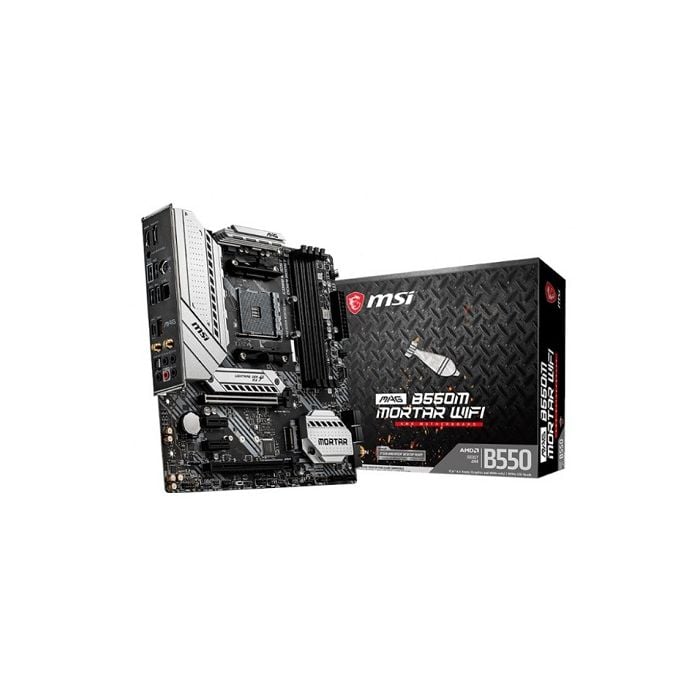

MSI Mag B550M Mortar WiFi AM4 Micro-ATX Motherboard
R4,659.00
SKU
MAGB550MMORTAR WIFI
Manufacturer's Website
Description
The MSI Mag B550M Mortar WiFi AM4 Micro-ATX Motherboard was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface, making it the best choice for entry-level gamers.
With more cores of processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end AMD CPU to run in full speed with MSI motherboards.
High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand, no matter whether you're a gamer, prosumer, or PC enthusiast. Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. 2.5Gbps LAN provides incredible data transfer speed, faster than general Gigabit LAN. This is a premium solution for demanding users.
Features
- Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-
- Series desktop processors
- Supports DDR4 Memory, up to 4400+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/MK and PCB with 2oz thickened copper is built for high-performance system and non-stop gaming experience.
- Enhanced Power Design: 8+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
- Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire
Specifications
| Socket | AMD Socket AM4 |
| CPU (Max Support) | RYZEN 9 |
| Chipset | AMD B550 Chipset |
| DDR4 Memory | 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 128 |
| PCI-E x16 | 2 |
| PCI-E x1 | 2 |
| SATAIII | 6 |
| M.2 Slot | 2 |
| RAID | 0/1/10 |
| LAN | 1 x Realtek 8125B 2.5G LAN |
| WiFi and Bluetooth | Intel Wi-Fi 6 AX200/ AX210 |
| USB 3.2 ports (Front) | 1(Gen 1, Type C), 2(Gen 1, Type A) |
| USB 3.2 ports (Rear) | 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 ports (Front) | 4 |
| USB 2.0 ports (Rear) | 2 |
| Audio ports (Rear) | 5+ Optical S/PDIF (Realtek ALC1200/ALC1220P Codec) |
| DisplayPort | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | Micro-ATX |
| Crossfire | Yes |
| Operating System | Support for Windows 10 64-bit |
| Free Shipping | No |
|---|
