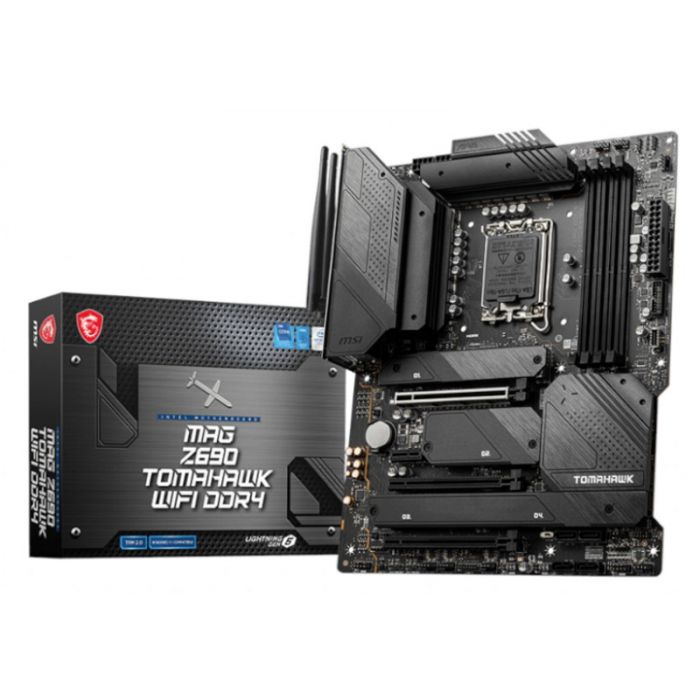

MSI MAG Z690 Tomahawk WiFi DDR4 LGA1700 ATX Gaming Motherboard - Black
R7,299.00
SKU
MAGZ690TOMAHAWKWIFDDR4
Manufacturer's Website
Description
The MSI MAG Z690 Tomahawk WiFi DDR4 LGA1700 ATX Gaming Motherboard - Black is loaded with advanced features and the latest technology to overwhelm any challenge at hand, no matter whether you're a gamer, prosumer, or PC enthusiast. MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced Audio, advanced LAN networking capabilities, USB and Mystic Light can turn any gaming experience into a more immersive one. 2.5Gbps LAN provides incredible data transfer speed, faster than general Gigabit LAN. This is a premium solution for demanding users.
With years of experience, MSI is no stranger to building high-performance motherboards. MSI R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. With more cores processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensure even high-end AMD CPU to run in full speed with MSI motherboards.
Features
- Supports 12th Gen Intel processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5200(OC) MHz
- Premium Thermal Solution
- Extended Heatsink Design
- M.2 Shield Frozr is built for high-performance systems
- 2.5G LAN and Intel Wi-Fi Solution
- 16+1+1 Duet rail power system
- 6 layer PCB with 2oz thickened copper
- Lightning M.2 running at PCIe Gen 5 maximizes performance for NVMe based SSDs
- Lightning USB 20G
- Audio Boost 5
- Multi-GPU
Specifications
| Socket | 1700 |
| CPU (Max Support) | i9 |
| Chipset | Intel Z690 Chipset |
| DDR4 Memory | 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 128 |
| PCI-E x16 | 3 |
| PCI-E x1 | 1 |
| SATAIII | 6 |
| M.2 Slot | 4 |
| RAID | 0/1/5/10 |
| LAN | 1x Intel I225-V 2.5G LAN |
| WiFi & Bluetooth | Intel Wi-Fi 6 module |
| USB 3.2 Ports (Front) | 1(Gen 2, Type C), 2(Gen 1, Type A) |
| USB 3.2 Ports (Rear) | 1(Gen 2x2, Type C), 3(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 Ports (Front) | 4 |
| USB 2.0 Ports (Rear) | 2 (Type-A) |
| Audio ports (Rear) | 5+ Optical S/PDIF (Realtek ALC4080 Codec) |
| DisplayPort | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | ATX |
| Crossfire | Yes |
| Operating System | Support for Windows 10 64-bit |
Package Content
- MSI MAG Z690 Tomahawk WiFi DDR4 LGA1700 ATX Gaming Motherboard - Black x1
- WiFi Antenna x2
- SATA cables x2
- EZ M.2 Clip x1
- USB Drive x1
- MAG Stickers Pack x1
- Quick Install Guide x1
- User Manual x1
| Free Shipping | No |
|---|
