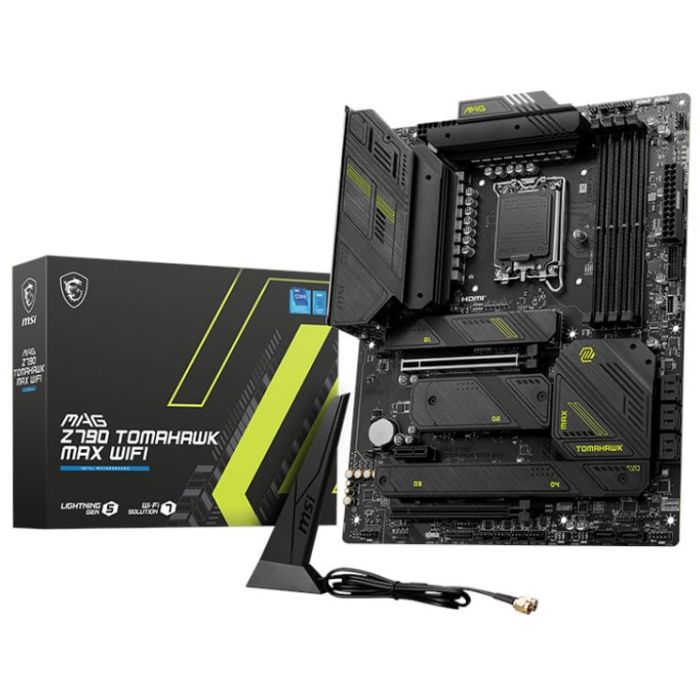

MSI Mag Z790 Tomahawk Max Wifi Ddr5 Lga1700 Atx Gaming Motherboard
R9,809.00
SKU
MAGZ790TOMAHAWKMAXWIFI
Supports ddr5 memory, up to 7800+(oc) mhz
16+1+1 mirrored power arrangement
Pcie 5.0 slot, lightning gen 5 m.2, usb 3.2 gen 2x2
Extended heatsink design and m.2 shield frozr
Description
Introducing the MSI Mag Z790 Tomahawk Max Wifi Ddr5 Lga1700 Atx Gaming Motherboard. The MSI MAG Z790 TOMAHAWK MAX WIFI motherboard is designed for gamers, providing a stable basis for their PC setups. It has various cutting-edge technologies, such as Wi-Fi 7, 2.5G LAN connectivity, DDR5 memory compatibility, PCIe 5.0 support, and a proprietary M.2 Shield Frozr for best performance. This motherboard is completely equipped to support Intels next-generation and 13th-generation Core CPUs. It has a premium VRM design with 16-phase mirrored power arrangements, each rated at 90A SPS, twin power connectors, and a power stage, making it well-suited for high-end processors.
The advanced SMT (Surface Mount Technology) used in the PCIe slot reduces interference and electrical noise, ensuring reliable PCI-E 5.0 signal support. When compared to the previous generation, this more than doubles the bandwidth of a x16 interface, reaching an impressive 128 GB/s. Furthermore, the sophisticated SMT welding method minimises electromagnetic interference and flaws in slot solder junctions. MSI motherboards ensure the delivery of clean and high-frequency DDR5 signals when paired with unique Memory Boost technology.
The Extended Heatsink design improves the heat dissipation surface dramatically, allowing even high-end processors to work at full capacity without overheating. It also protects M.2 SSDs, protecting them from throttling and enabling speedier operation. The higher MOS components are effectively covered by the VRM heatsink, which aids in heat dissipation. All CPU cores can sustain top performance thanks to high-quality 7W/mK MOSFET thermal pads and extra choke thermal pads. The MSI MAG Z790 TOMAHAWK MAX WIFI motherboard improves DDR performance significantly by using the latest DDR5 memory technology. This motherboard, when combined with specialised SMT welding and MSI Memory Boost technology, is poised to deliver world-class memory performance.
Features
- Supports ddr5 memory, up to 7800+(oc) mhz
- 16+1+1 mirrored power arrangement
- Pcie 5.0 slot, lightning gen 5 m.2, usb 3.2 gen 2x2
- Extended heatsink design and m.2 shield frozr
- Dual 8-pin cpu power connectors, core boost, memory boost
- Audio boost 5 studio-grade sound quality for the most immersive gaming experience
- 6-layer pcb made by 2oz thickened copper and server-grade level material
- Supports intel core next-gen / 13th gen / 12th gen, pentium gold and celeron processors for lga 1700 socket
Specifications
| Socket | LGA 1700 |
| Cpu (Max Support) | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Chipset | Intel Z790 Chipset |
| Ddr5 Memory | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Memory Channel | Dual |
| Dimm Slots | 4 |
| Max Memory (Gb) | 192 |
| Pci-E X16 | 2 |
| Pci-E X1 | 1 |
| Sata 6G | 8 |
| M.2 Slot | 4 |
| Raid | 0/1/5/10 |
| Lan | 1x Intel 2.5Gbps LAN |
| Wireless/Bluetooth | Intel Wi-Fi 7, Supports Bluetooth 5.4 |
| Usb 3.2 Ports (Front) | 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 Type C |
| Usb 3.2 Ports (Rear) | 4x USB 3.2 Gen1 Type A, 4x USB 3.2 Gen2 Type A, 1x USB 3.2 Gen2 Type C, 1x USB 3.2 Gen2x2 Type |
| Usb 2.0 Ports (Front) | 4 |
| Audio Ports (Rear) | Realtek ALC4080 Codec |
| Displayport | 1 |
| Hdmi | 1 |
| Directx | 12 |
| Form Factor | ATX |
| Operating System | Support for Windows 11 64-bit, Windows 10 64-bit |
| Weight | 1286 g |
| Dimensions | 34 x 7 x 27 cm |
| Brand | MSI |
| Warranty | 36 Months |
| Colour | Black |
| Cpu Socket | LGA1700 |
| Form Factor | ATX |
| Dimm Slots | 4 |
| Memory Generation | DDR5 |
| Memory Clock Speed | 7800MHz+(OC) |
| Memory Capacity | 192GB |
Package Contents
- 1x msi mag z790 tomahawk max wifi ddr5 lga1700 atx gaming motherboard - black
- 2x wi-fi antenna
- 2x ez m.2 clips
- 1x usb drive
- 2x sata cables
- 1x cable stickers
- 1x quick installation guide
