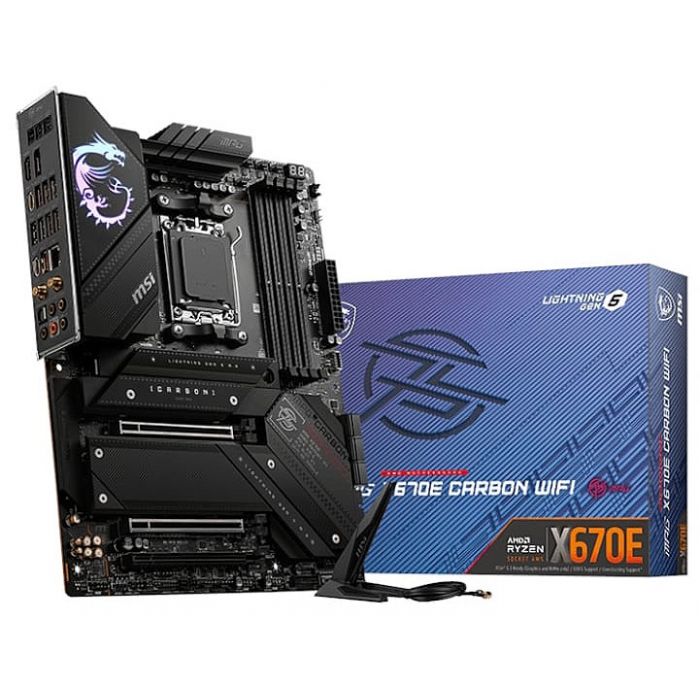

MSI Mpg X670E Carbon Wifi Amd Am5 Atx Gaming Motherboard
R14,159.00
SKU
MPGX670ECARBONWIFI
Supports amd ryzen 8000 / 7000 series desktop processors
Supports ddr5 memory, dual channel ddr5 7800+mhz (oc)
18+2+1 duet rail power system
Dual 8-pin cpu power connectors, core boost, memory boost
Description
Introducing the MSI Mpg X670E Carbon Wifi Amd Am5 Atx Gaming Motherboard. The MSI MPG X670E CARBON WIFI lets you take a huge step forward in DDR performance enhancement with the latest DDR5 memory. Combining a dedicated SMT welding process and MSI Memory Boost technology, the MPG X670E CARBON Wi-Fi is ready to deliver world-class memory performance.
The MSI MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion. Unleash and sustain the maximum performance with a premium VRM design built with a total of 18+2+1 Duet Rail Power System(DRPS). Combining dual power connectors and Power Stage, MPG X670E CARBON Wi-Fi is ready for the challenge of high-end processors.
The PCB design has been optimised for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission. The patented design allows you to set your M.2 and Shield Frozr without the annoying screws, providing the easiest way for M.2 installation. Designed to support the most popular All-In-One & customised water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked keep-out-zone allows for easy and safe installation and a perfect fit.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up 4 temperature targets, which will adjust the fan speeds automatically. Connect and synchronise with MSI coolers and cases with strategically positioned pin-header locations, including a dedicated pump-fan header. The MSI MPG X670E CARBON Wi-Fi employs a carbon black colour scheme and RGB lighting to show off different personalities and identities. Splash on some colour and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colours and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
Features
- Supports AMD Ryzen 8000 / 7000 series desktop processors
- Supports ddr5 memory, dual channel ddr5 7800+mhz (oc)
- 18+2+1 duet rail power system
- Dual 8-pin cpu power connectors, core boost, memory boost
- Extended heatsink with direct touched heat-pipe
- Mosfet thermal pads rated for 7w/mk
- Additional choke thermal pads and double-sided m.2 shield frozr
- 8-layer pcb made by 2oz thickened copper and server grade level material
- Patented screwless m.2 shield frozr, ez m.2 clips, smart button, pre-installed i/o shield, steel armor
- Pcie 5.0 slots, lightning gen 5 x4 m.2, usb 3.2 gen 2x2
- 2.5g lan and wi-fi 6e solution
- 16.8 million colors / fancy lighting effects controlled in one click. mystic light sync supports latest argb gen2 strips, rgb strips and ambient devices
- Audio boost 5 studio grade sound quality for the most immersive gaming experience
Specifications
| Socket | AM5 |
| Cpu (Max Support) | Supports AMD Ryzen 8000/ 7000 Series Desktop Processors |
| Chipset | AMD X670 |
| Ddr5 Memory | DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Max. Overclocking Frequency | 1DPC 1R Max speed up to 7800+ MHz, 1DPC 2R Max speed up to 6400+ MHz, 2DPC 1R Max speed up to 6400+ MHz, 2DPC 2R Max speed up to 5400+ MHz |
| Memory Channel | Dual Channel DDR5 |
| Dimm Slots | 4 |
| Max Memory (Gb) | 256 |
| Pci-E X16 | 3 (2 x PCIe 5.0 and 1 x PCIe 4.0) |
| Sataiii | 6 |
| M.2 Slot | 4 |
| Raid | 0/1/10 |
| Lan | 1x Realtek RTL8125BG 2.5Gbps LAN |
| Wi-Fi And Bluetooth | Intel Wi-Fi 6E module |
| Usb 3.2 Ports (Front) | 1 (Gen 2, Type-C), 4(Gen 1, Type A) |
| Usb 3.2 Ports (Rear) | 1 (Gen 2x2, Type-C), 6(Gen 2, Type A) |
| Usb 2.0 Ports (Front) | 4 |
| Usb 2.0 Ports (Rear) | 2 |
| Audio Ports (Rear) | 7.1 Channel HD Audio (Realtek ALC4080 Codec) |
| Type-C Display Port | 1 |
| Displayport | 1 |
| Hdmi | 1 |
| Directx | 12 |
| Form Factor | ATX |
| Operating System | Support for Windows 11 64-bit and Windows 10 64-bit |
| Weight | 2512 g |
| Dimensions | 34 x 7 x 27 cm |
| Brand | MSI |
| Warranty | 36 Months |
| Colour | Black |
| Cpu Socket | AM5 |
| Form Factor | ATX |
| Lighting | RGB |
| Dimm Slots | 4 |
| Memory Generation | DDR5 |
| Memory Clock Speed | 6600MHz+(OC) |
| Memory Capacity | 128GB |
Package Contents
- 1x msi mpg x670e carbon wifi amd am5 atx motherboard - black
- 1x wi-fi antenna
- 2x sata cables
- 3x ez m.2 clip
- 1x usb drive
- 1x 1 to 2 rgb led extension y cable
- 1x rainbow rgb led extension cable
- 1x quick install guide
| Free Shipping | No |
|---|
