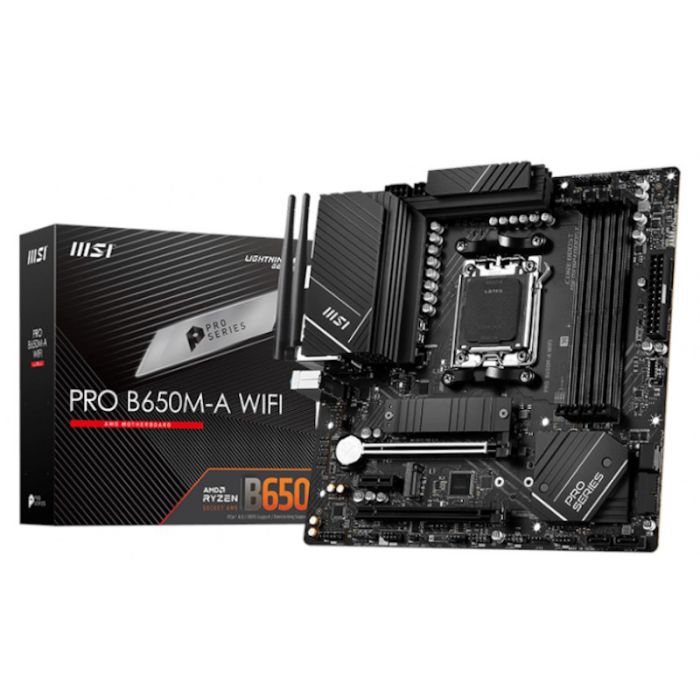

The MSI Pro B650M AMD Ryzen Socket AM5 MATX Gaming Motherboard - Black is designed with tons of flexible tools and a convenient Wi-Fi solution with DDR5 memory support as well as the latest AMD AM5 socket CPU support. Core Boost technology combines MSI's premium layout and optimized power design, which allows for faster and undistorted current delivery to the CPU at pin-point precision.
It not only supports a multi-core CPU, but also creates the perfect conditions for over clocking your CPU. The motherboards PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
The MSI PRO B650M-A features a huge step in DDR performance enhancement with the latest DDR5 memory. Combining a dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver world-class memory performance. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what.
The easy-to-enable EXPO profile with auto power settings gives you the best memory speed and stability. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked keep-out-zone allows for easy and safe installation and a perfect fit.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in the BIOS and software with a simplified graphical interface. You can also set up 4 temperature targets, which will adjust the fan speeds automatically. MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence.
Socket | AM5 |
CPU Support | Supports AMD Ryzen 7000 Series Desktop Processors |
Chipset | AMD B650 |
DDR5 Memory | DDR5 4800 MHz (by JEDEC & PRO) |
Max. Overclocking Frequency | 1DPC 1R Max speed up to 6400+ MHz, 1DPC 2R Max speed up to 5800+ MHz, 2DPC 1R Max speed up to 6000+ MHz, 2DPC 2R Max speed up to 4000+ MHz |
Memory Channel | Dual Channel DDR5 |
DIMM Slots | 4 |
Max Memory | 128GB |
PCI-E x16 | 2 |
PCI-E x1 | 1 |
SATAIII | 4 |
M.2 Slot | 2 |
RAID | 0/1/10 |
LAN | 1x Realtek 8125BG 2.5G LAN |
Wi-Fi And Bluetooth | Intel Wi-Fi 6E module |
USB 3.2 Ports (Front) | 1(Gen 2, Type-C), 2(Gen 1, Type A) |
USB 3.2 Ports (Rear) | 4(Gen 2, Type A), 4(Gen 1, Type A) |
USB 2.0 Ports (Front) | 4 |
Audio Ports (Rear) | 7.1 Channel HD Audio (Realtek ALC897 Codec) |
DisplayPort | 1 |
HDMI | 1 |
DirectX | 12 |
Form Factor | mATX |
Operating System | Support for Windows 11 64-bit and Windows 10 64-bit |
