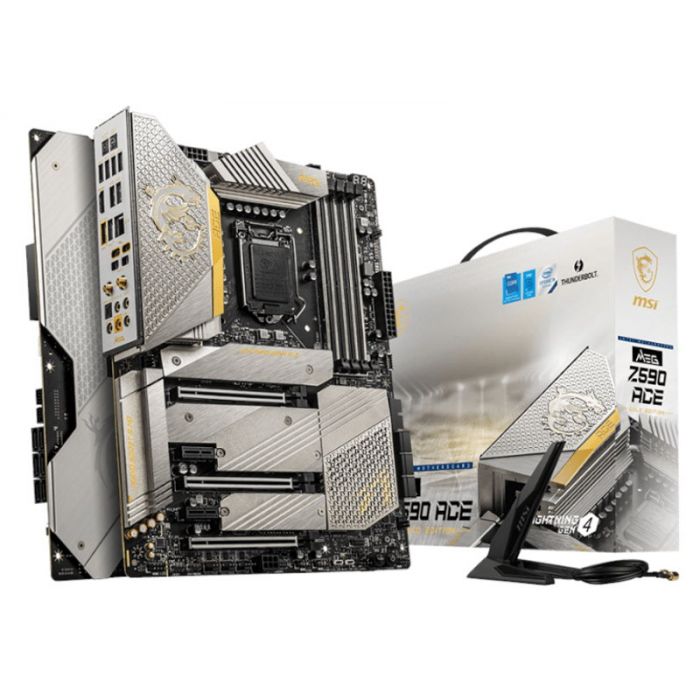

MSI Z590 Ace Gold Edition Intel LGA1200 ATX Gaming Motherboard - White
R12,959.00
SKU
Z590ACEGOLDETD
Manufacturer's Website
Description
The MSI Z590 Ace Gold Edition Intel LGA1200 ATX Gaming Motherboard - White is designed for the latest Intel processors and features support for DDR4 with Lightning Gen4. It also supports 2.5Gbps LAN, which provides incredible data transfer speeds that are faster than general Gigabit LAN. This is a premium solution for demanding users. With years of experience, MSI is no stranger to building high-performance motherboards.
MSI R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand, no matter whether you're a gamer, prosumer, or PC enthusiast.
MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immersive one.
Features
- Supports 11th and 10th Gen Intel processors for LGA 1200 socket
- Supports DDR4 Memory, up to, 5600(OC) MHz
- Genuine 24K Gold
- Premium aesthetics with a platinum colour finish
- Genuine 24K-gold foil heatsink perfectly show off the concept of beauty
- Dual Thunderbolt 4 ports
- Quadruple M.2 Connectors
- INTERSIL digital PWM
- 16+2+1 phases with 90A Smart Power Stage
- Dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors
- Outstanding Cooling Solution
- Aluminium Cover
- VRM Heat-pipe, 7W/mK thermal pads
- M.2 Shield Frozr and Aluminium Backplate ensure the extreme performance with low temp
- 2.5G LAN with the latest Wi-Fi 6E
- Smart Button: One button with multiple hardware control
- 8 Layer PCB with 2oz Thickened Copper
Specifications
| CPU (Max Support) | i9 |
| Socket | 1200 |
| Chipset | Intel Z590 Chipset |
| DDR4 Memory | 5600(OC)/ 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memory Channel | Dual |
| Dimm Slots | 4 |
| Max Memory (GB) | 128 |
| PCI-E x16 | 3 |
| PCI-E x1 | 2 |
| SATAIII | 6 |
| M.2 Slot | 4 |
| RAID | 0/1/5/10 |
| LAN | 1x Intel I225-V 2.5G LAN |
| WiFi & Bluetooth | Intel Wi-Fi 6E AX210 |
| Thunderbolt 4 | 2x USB Type-C up to 40G, Charging support up to 5V/3A, 15W, 2x Mini DisplayPort input ports |
| USB 3.2 Ports (Front) | 1(Gen2, Type C), 2(Gen1, Type A) |
| USB 3.2 Ports (Rear) | 2(Gen2, Type A), 4(Gen1, Type A) |
| USB 2.0 Ports (Front) | 4 |
| USB 2.0 Ports (Rear) | 2 |
| AUDIO Ports (Rear) | 5+ Optical S/PDIF (Realtek ALC4082 Codec + ESS SABRE9018Q2C combo DAC) |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | ATX |
| SLI | Yes |
| Crossfire | Yes |
| Operating System | Support for Windows 10 64-bit |
Package Content
- MSI Z590 Ace Gold Edition Intel LGA1200 ATX Gaming Motherboard - White x1
- Wi-Fi Antenna x1
- M.2 Screws/Standoff Sets x4
- Screwdrivers x2
- USB Drive x1
- Cleaning Brush x1
- SATA Cables x4
- DP to Mini DP Cable x1
- Thermistor Cable x1
- 1 to 2 RGB LED Extension Y Cable x1
- Rainbow RGB LED Extension Cable x1
- Corsair RGB LED Extension Cable x1
- Cable Stickers Pack x1
- MEG Stickers Pack x1
- Quick Install Guide x1
- User Manual x1
| Free Shipping | No |
|---|
