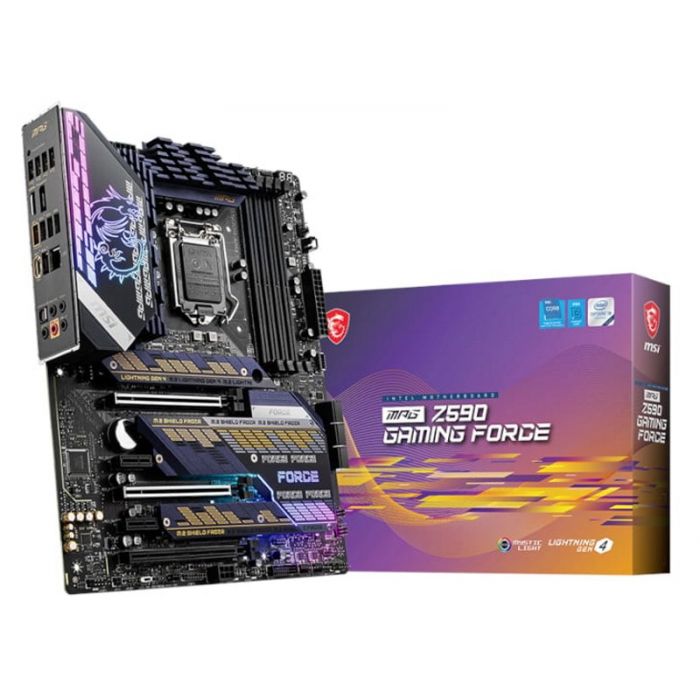

MSI Z590 Gaming Force Intel LGA1200 ATX Gaming Motherboard - Black
R7,049.00
SKU
MPGZ590GAMINGFORCE
Manufacturer's Website
Description
Utilizing 11th Gen Intel processors, the MSI Z590 Gaming Force Intel LGA1200 ATX Gaming Motherboard - Black feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immersive one.
2.5Gbps LAN provides incredible data transfer speed, faster than general Gigabit LAN. This is a premium solution for demanding users. With years of experience, MSI is no stranger to building high-performance motherboards. MSI R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand, no matter whether you're a gamer, prosumer, or PC enthusiast.
Features
- Supports 11th and 10th Gen Intel processors for LGA 1200 socket
- Supports DDR4 Memory, up to, 5333(OC) MHz
- Lightning Fast Game experience
- PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors
- Core Boost
- DDR4 Boost
- Premium Thermal Solution
- Enlarged heatsink with heat-pipe
- MOSFET thermal pads rated for 7W/MK
- 3x M.2 Shield Frozr are built for high-performance system
- 16.8 million colours / 29 effects controlled in one click
- MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip
- 2.5G LAN with LAN Manager
- Audio Boost 5
- 6-layer PCB made by 2oz thickened copper and server grade-level material
- Pre-installed I/O Shield
Specifications
| CPU (Max Support) | i9 |
| Socket | 1200 |
| Chipset | Intel Z590 Chipset |
| DDR4 Memory | 5333(OC)/ 5200(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory (GB) | 128 |
| PCI-E X16 | 3 |
| PCI-E X1 | 2 |
| SATAIII | 6 |
| M.2 Slot | 3 |
| RAID | 0/1/5/10 |
| LAN | 1x Intel I225-V 2.5G LAN |
| USB 3.2 Ports (Front) | 1(Gen 2, Type C), 2(Gen 1, Type A) |
| USB 3.2 Ports (Rear) | 1(Gen 2x2, Type C), 3(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 Ports (Front) | 4 |
| USB 2.0 Ports (Rear) | 4 |
| Audio Ports (Rear) | 5+ Optical S/PDIF (Realtek ALC4080 Codec) |
| DisplayPort | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | ATX |
| Crossfire | Yes |
| Operating System | Support for Windows 10 64-bit |
Package Content
- MSI Z590 Gaming Force Intel LGA1200 ATX Gaming Motherboard - Black x1
- Cleaning Brush x1
- Screwdrivers x2
- MPG Stickers x1
- Cable Stickers x
- USB Drive x1
- 1 to 2 RGB LED Extension Cable x1
- Corsair RGB LED Extension Cable x1
- Rainbow RGB LED Extension Cable x1
- SATA Cables x2
- M.2 Standoff Sets/screws x3
- User Manual x1
- Quick Installation Guide x1
| Free Shipping | No |
|---|
