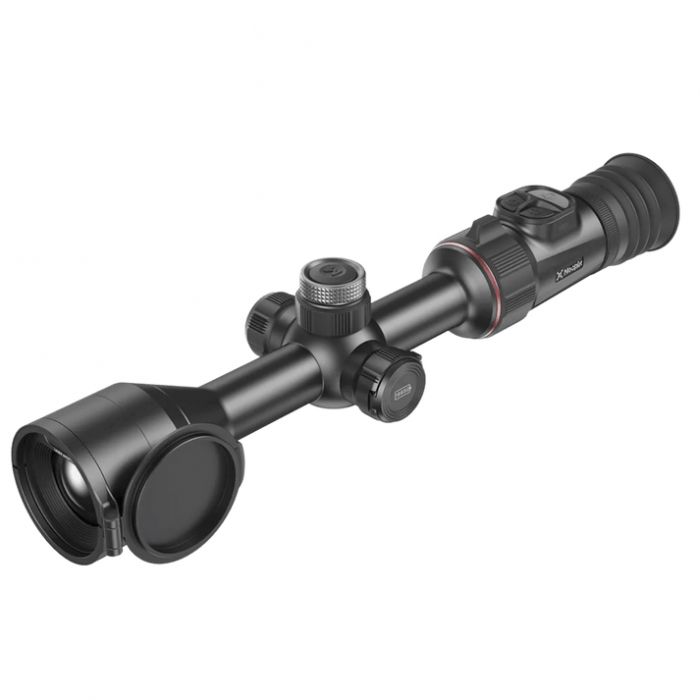

Nocpix ACE 2 H35R Thermal Riflescope

Manufacturer's Website

Description

Introducing the Nocpix ACE 2 H35R Thermal Riflescope. A versatile thermal optic designed for detailed observation across short, medium and extended distances. It features a 640 x 512 thermal sensor with a 12 m pixel pitch, delivering clear thermal imagery with a sensitivity of less than 12 mK NETD. This high level of thermal sensitivity helps reveal subtle temperature differences, supporting improved target definition in challenging weather and environmental conditions. The ACE 2 H35R is equipped with a 35 mm F0.9 objective lens and provides a detection range of up to 1,800 m for a target measuring 1.7 m x 0.5 m. Its magnification range extends from 2x to 20x, while an additional 1x to 2x ocular zoom provides further flexibility when inspecting distant subjects. The field of view measures approximately 12.6 x 10.1, equivalent to around 21.9 x 17.6 m at 100 m, providing a useful balance between situational awareness and detailed viewing.

Thermal images are displayed on a large 1.03-inch AMOLED screen with a resolution of 2560 x 2560. Up to seven colour palettes are available, allowing the user to select a thermal presentation that best suits the environment or personal viewing preference. A 60 Hz frame rate provides smooth and responsive imagery when tracking moving subjects, while the 60 mm eye relief, 10 mm exit pupil diameter and -5 to +4 diopter adjustment support comfortable viewing. An integrated laser rangefinder provides distance measurements out to a maximum of 1,200 m, while Ballistics 2.0 adds onboard ballistic calculation capability. This combination allows range and ballistic information to be incorporated directly into the optical system, reducing reliance on separate external equipment and improving convenience during longer-range use.

The Nocpix ACE 2 H35R includes up to 64 GB of built-in memory and supports photo and video recording. RAV functionality is also included, together with Wi-Fi and app connectivity for additional control, media access and device interaction. These integrated features allow users to capture and store observations directly on the riflescope. Power is supplied by a dual-battery system consisting of a built-in 3650 mAh battery and a replaceable 18650 battery with a 3650 mAh capacity. This configuration provides up to approximately eight hours of maximum operating time at 22C and allows the removable battery to be replaced when extended runtime is required.

Measuring approximately 367 x 65 x 92 mm and weighing around 850 g, the Nocpix ACE 2 H35R combines strong thermal performance with a comparatively compact design. Its 640 x 512 sensor, sub-12 mK sensitivity, 1,800 m detection range, integrated 1,200 m laser rangefinder, Ballistics 2.0 functionality and high-resolution AMOLED display make it a capable thermal observation platform for a wide variety of demanding outdoor applications.

Features

• Up to 7 Colour Palettes
• 1.03 inch AMOLED
• Up to 8h Max Operating Time
• Up to 64GB Built-in Memory
• Built-in 1200m LRF
• Ballistics 2.0

Specifications
