Nocpix ACE 2 H50R Thermal Riflescope

Manufacturer's Website

Description

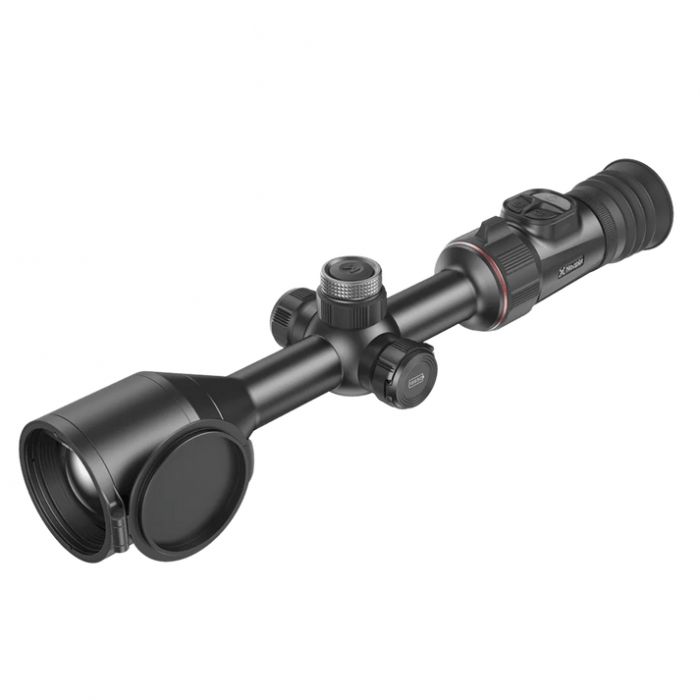

Introducing the Nocpix ACE 2 H50R Thermal Riflescope. A high-performance thermal optic designed for long-range observation and precision use. It features a 640 x 512 thermal sensor with a 12 m pixel pitch, delivering detailed thermal imagery with a sensitivity of less than 12 mK NETD. This high thermal sensitivity helps the scope distinguish subtle temperature differences, supporting improved target definition in difficult environmental and weather conditions. The ACE 2 H50R is equipped with a 50 mm F0.9 objective lens and offers a detection range of up to 2,600 m for a target measuring 1.7 m x 0.5 m. Its magnification range extends from 3x to 24x, while an additional 1x to 2x ocular zoom provides further viewing flexibility. The field of view measures approximately 8.8 x 7.0, equivalent to around 15.4 x 12.3 m at 100 m, making it well suited to detailed observation at medium and extended distances.

Thermal imagery is displayed on a large 1.03-inch AMOLED screen with a high resolution of 2560 x 2560. Up to seven colour palettes are available, allowing the user to select a thermal display mode that best suits the environment or personal viewing preference. A 60 Hz frame rate provides smooth image reproduction when tracking moving subjects, while the 60 mm eye relief, 10 mm exit pupil diameter and -5 to +4 diopter adjustment support comfortable viewing. An integrated laser rangefinder provides distance measurements out to a maximum of 1,200 m, while Ballistics 2.0 adds onboard ballistic calculation functionality. This combination enables distance and ballistic information to be incorporated directly into the scope, reducing the need for separate external devices and making the system more convenient for long-range use.

The Nocpix ACE 2 H50R includes up to 64 GB of built-in memory and supports both photo and video recording. RAV functionality is also included, together with Wi-Fi and app connectivity for additional control, media access and device interaction. These integrated digital features allow observations and recorded content to be captured and stored directly on the riflescope. Power is supplied through a dual-battery system consisting of a built-in 3650 mAh battery and a replaceable 18650 battery with a 3650 mAh capacity. This configuration provides up to approximately eight hours of maximum operating time at 22C and allows the removable battery to be exchanged when extended runtime is required.

Measuring approximately 383 x 70 x 92 mm and weighing around 980 g, the Nocpix ACE 2 H50R combines high thermal sensitivity, a 2,600 m detection range, integrated 1,200 m laser rangefinding and a large high-resolution AMOLED display in a feature-rich thermal riflescope. With Ballistics 2.0, onboard recording, RAV support, Wi-Fi connectivity and a flexible dual-battery system, it provides a comprehensive thermal observation solution for demanding long-range applications.

Features

• Up to 7 Colour Palettes
• 1.03 inch AMOLED
• Up to 8h Max Operating Time
• Up to 64GB Built-in Memory
• Built-in 1200m LRF
• Ballistics 2.0

Specifications
