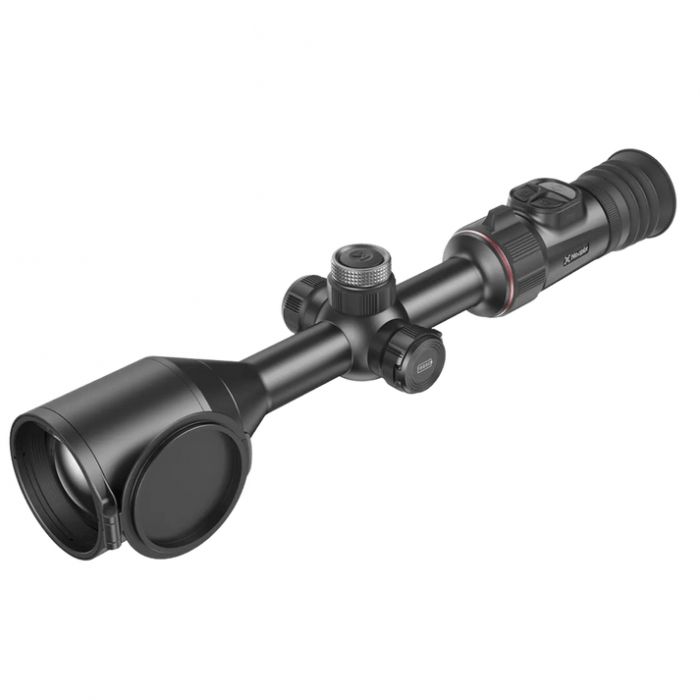

Nocpix ACE 2 S60R Thermal Riflescope

Manufacturer's Website

Description

Introducing the Nocpix ACE 2 S60R Thermal Riflescope. A high-performance thermal optic designed for detailed long-range observation and precision use. It features a high-resolution 1280 x 1024 thermal sensor with a 12 m pixel pitch, providing excellent image detail and target definition. With a thermal sensitivity of less than 12 mK NETD, the scope is capable of detecting very small temperature differences, helping maintain clear thermal imagery even in demanding environmental conditions. Equipped with a large 60 mm F1.0 objective lens, the ACE 2 S60R provides a detection range of up to 3,100 m for a target measuring 1.7 m x 0.5 m. Its magnification range extends from 2x to 28x, while an additional 1x to 2x ocular zoom provides further flexibility when viewing distant subjects. The field of view measures approximately 14.7 x 11.7, equivalent to around 25.6 x 20.5 m at 100 m, allowing for a useful balance between wide-area observation and long-range detail.

Thermal imagery is displayed through a large 1.03-inch AMOLED screen with an impressive 2560 x 2560 resolution. Up to seven colour palettes are available, allowing the user to adapt the thermal display to different environments and personal viewing preferences. The scope supports 30 Hz and 60 Hz frame-rate operation, helping provide smooth and responsive imagery when observing moving subjects. A 60 mm eye relief, 10 mm exit pupil diameter and diopter adjustment from -5 to +4 further support comfortable viewing. A built-in laser rangefinder provides distance measurements out to a maximum of 1,200 m, while integrated Ballistics 2.0 functionality provides onboard ballistic calculation support. This combination allows ranging and ballistic information to be incorporated directly into the optical system, reducing the need for additional external devices and improving convenience during long-range use.

The ACE 2 S60R includes up to 64 GB of built-in memory and supports both photo and video recording. RAV functionality is also included, together with Wi-Fi and app connectivity for additional control, media access and device interaction. These integrated digital features allow observations and important moments to be captured and stored directly on the riflescope. Power is supplied through a dual-battery system consisting of a built-in 3650 mAh battery and a replaceable 18650 battery with a capacity of 3650 mAh. This configuration provides up to approximately seven hours of maximum operating time at 22C while also allowing the removable battery to be exchanged when additional runtime is required.

Measuring approximately 397 x 73 x 92 mm and weighing around 980 g, the Nocpix ACE 2 S60R combines a high-resolution 1280 x 1024 thermal sensor, exceptional sub-12 mK sensitivity, a 3,100 m detection range and integrated 1,200 m laser rangefinding in a feature-rich thermal riflescope. Its large AMOLED display, Ballistics 2.0 support, onboard recording and dual-battery configuration make it a comprehensive option for demanding long-range thermal observation.

Features

• Up to 7 Colour Palettes
• 1.03 inch AMOLED
• Up to 7h Max Operating Time
• Up to 64GB Built-in Memory
• Built-in 1200m LRF
• Ballistics 2.0
