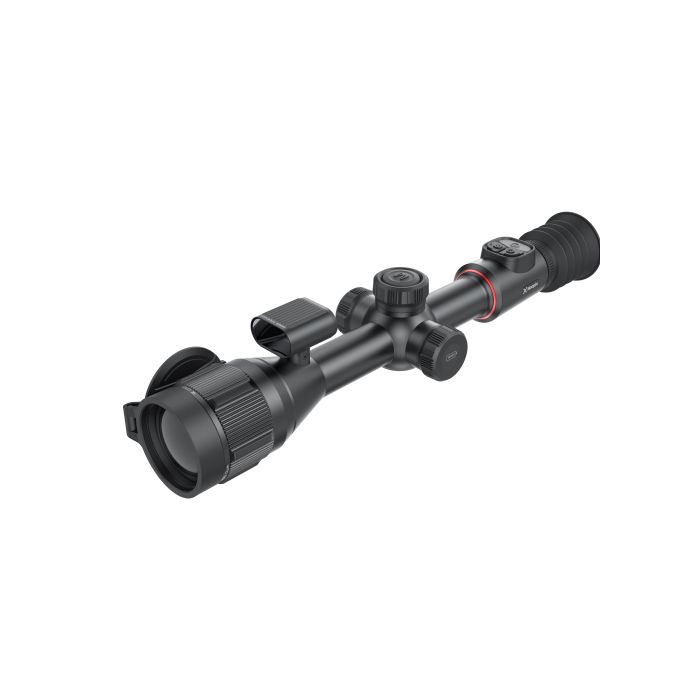

Nocpix BOLT H50R Thermal Rifle Scope

Manufacturer's Website

Description

Introducing the Nocpix BOLT H50R Thermal Rifle Scope. A high-performance thermal optic designed for users who require detailed thermal imaging, extended operating time, and integrated ballistic functionality. At its core is a 640x512 thermal sensor with 12m pixel size and a NETD of less than 18mK, providing a high level of thermal sensitivity. Combined with a 60Hz frame rate, the H50R is designed to deliver smooth thermal imagery and responsive viewing.

The H50R features a 50mm F1.0 objective lens and offers adjustable magnification from 3x to 24x. Its field of view is 8.8 x 7.0, equivalent to approximately 15m x 12m at 100m. The scope has a stated detection range of up to 2600m for a target measuring 1.7m x 0.5m under the specified detection conditions. A 0.39-inch AMOLED display with a 1024x768 resolution provides the viewing interface, while 50mm of eye relief and a 10mm exit pupil diameter contribute to the optical design. Integrated functionality gives the Nocpix BOLT H50R more than thermal viewing alone. The scope supports customizable reticles and ballistic parameter settings, with built-in ballistic calculation and a maximum rangefinder distance of 1200m. It also includes RAV functionality, as well as integrated photo and video recording. With 64GB of built-in memory, users have substantial onboard storage for captured content, while Wi-Fi and N-LINK app connectivity provide additional connectivity options.

Designed for extended use in demanding environments, the H50R is IP67 rated for protection against dust and water. Its power system combines a built-in 5000mAh battery with an 18650 battery and provides a maximum operating time of up to 9 hours at 22C. The scope weighs 960g and measures 394 x 91.6 x 80mm, offering a feature-rich thermal optic in a robust, purpose-built design. The Nocpix BOLT H50R combines a 640x512, 12m thermal sensor, less than 18mK NETD, 60Hz frame rate, 50mm F1.0 objective lens and 324x magnification. Additional features include a 0.39-inch 1024x768 AMOLED display, 2600m detection range, 1200m maximum rangefinder distance, ballistic calculation, customizable reticles, photo and video recording, 64GB memory, N-LINK app connectivity and up to 9 hours of operating time. With its IP67 rating and integrated power system, it is designed as a comprehensive thermal scope for users requiring advanced imaging and onboard functionality.

Features

• Up to 7 Colour pellets
• 0.39 inch AMOLED
• Up to 9h Max Operating Time
• 64GB Built In Memory
• IP67 Rated
• Built In LRF
• N-LINK app connectivity
• Customizable reticles
• Ballistic parameter settings

Specifications
