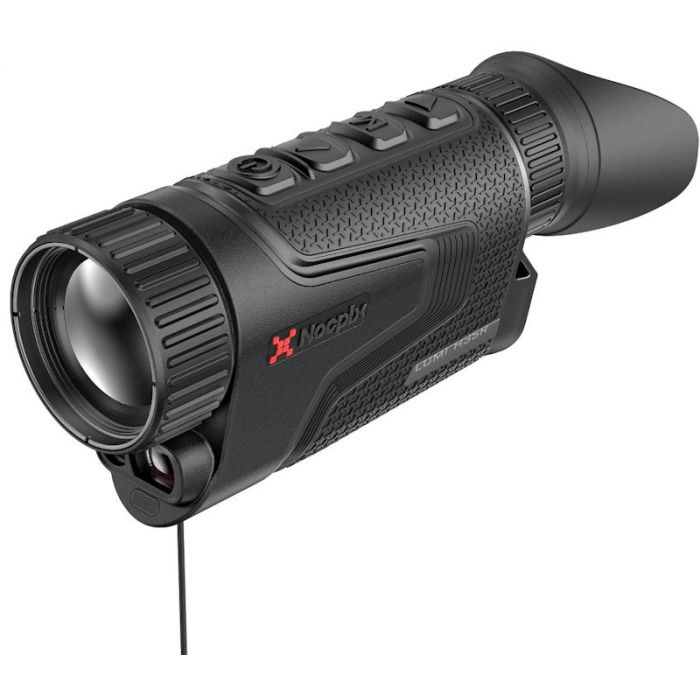

Nocpix LUMI H35R LRF Thermal Monocular
R44,990.00
SKU
1A00600126
640x512 Sensor Resolution
800m Detection Range
2.5-20x Magnification
-/<18 NETD
Description
Introducing the Nocpix LUMI H35R LRF Thermal Monocular. The Nocpix LUMI H35R LRF Thermal Monocular is an advanced, compact thermal imaging device designed for versatile outdoor and tactical applications. Featuring a high-resolution 0.39-inch AMOLED display with a resolution of 1024x768, the LUMI H35R provides clear, detailed thermal imagery that enhances target detection and situational awareness in various environments. Its thermal sensor boasts a resolution of 640x512 pixels with a 12-micrometer pixel size and a NETD of less than 18 millikelvin, ensuring excellent sensitivity to subtle temperature differences, even in challenging conditions.
Equipped with an integrated 800-meter laser rangefinder, the LUMI H35R offers precise distance measurement for targets, supporting ballistic calculations that improve shooting accuracy and tactical planning. The devices 35mm F0.9 objective lens provides a wide field of view-12.5 by 9.4 degrees at 100 meters-allowing users to scan expansive areas efficiently. The monocular features a variable magnification range of 2.5x to 20x, enabling both wide-area reconnaissance and detailed target examination. Its electronic image stabilisation minimises shake and jitter, ensuring stable visuals during movement or extended observation periods.
Constructed with a durable IP67-rated enclosure, the LUMI H35R is resistant to dust and water, making it suitable for harsh outdoor conditions. Weighing just 385 grams with the battery, its highly portable and designed for comfortable handheld use. Powered by a replaceable 18650 battery, the monocular offers up to 4.5 hours of continuous operation, supporting extended field sessions. The devices compact dimensions (147x47x74 mm) further enhance its portability, making it an ideal choice for hunters, security personnel, or outdoor enthusiasts seeking reliable thermal imaging in a lightweight package.
Additional features include electronic image stabilisation, R+ All Image Algorithm for enhanced image processing, and a built-in 32GB memory capacity for storing images and videos. The monocular offers a maximum detection range of 1800 meters for typical target sizes, with an eye relief of 25mm and a 10mm exit pupil diameter for comfortable viewing. It also includes a MIC for audio recording, and operates within a temperature range of -20C to +50C. With its comprehensive feature set, the Nocpix LUMI H35R LRF Thermal Monocular stands out as a versatile, rugged, and high-performance thermal imaging device suitable for a wide array of outdoor and tactical missions.
Features
- 0.39 inch AMOLED
- Up to 4.5h battery life
- 32GB Memory Capacity
- 800m integrated laser rangefinder (LRF)
- F0.9 Lens
- 18650 Replaceable Battery
- Eletronic Image Stabilisation
- R+ Al lmage Algorithm
- Ballistic Calculation
Specifications
| Brand | Nocpix |
| Model | LUMI H35R |
| Thermal Sensor | 640x512 & 12m |
| NETD,mK | -/<18 |
| Frame Rate,Hz | 50 |
| Objective Lens,mm | 35 F0.9 |
| Field of view(HxV),0/m at 100m | 12.5x9.4 /22x16 |
| Magnification,x | 2.5-20 |
| Detective range,m(Target size:1.7mx0.5m,P(n)99%) | 1800 |
| Exit relief,mm | 25 |
| Exit pupil diameter,mm | 10 |
| Diopter,D | -5 - +5 |
| Type | 0.39 inch AMOLED |
| Resolution | 1024x768 |
| Battery Type | Replaceable 18650 |
| Max.operation time,(t22C)h | 4.5 |
| Safety Class for Laser | Class 1 |
| Max.Rangerfinder distance,m | 800 |
| MIC | Yes |
| Memory capacity,GB | 32 |
| IP rating | IP67 |
| Operating temperature,C | -20 - +50 |
| Weight,g(with battery) | 385 |
| Dimension,mm | 147x47x74 |
| Free Shipping | No |
|---|
