Nocpix Lumi P13 Thermal Monocular

Manufacturer's Website

Description

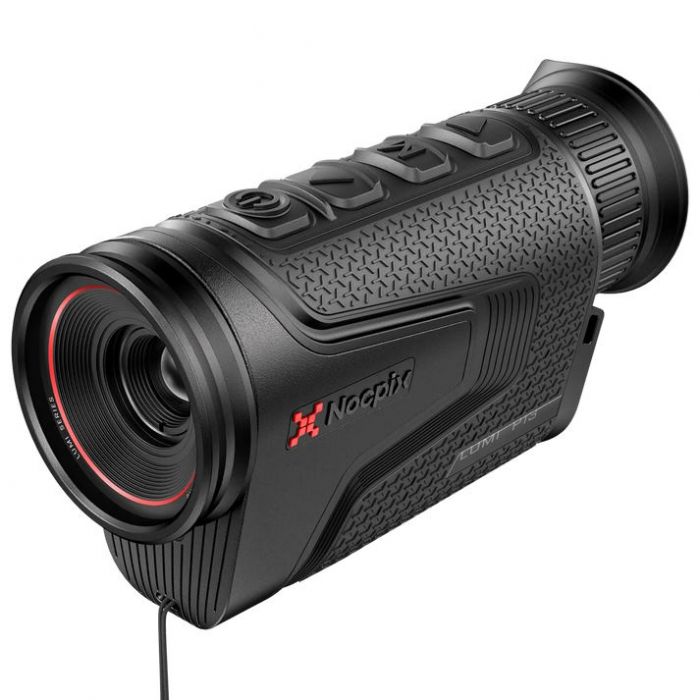

Introducing the Nocpix Lumi P13 Thermal Monocular. A compact thermal observation device designed to provide clear imaging in a lightweight and easy-to-carry format. It features a 256 x 192 thermal sensor with a 12 m pixel pitch, delivering reliable thermal detection for short- to medium-range observation. With a thermal sensitivity of less than 20 mK NETD, the device is capable of detecting subtle temperature differences to help improve image detail in challenging conditions. Equipped with a 13 mm F0.9 objective lens, the Lumi P13 benefits from a large aperture that allows more thermal energy to reach the sensor. Its 2x to 8x magnification range provides flexibility between wider-area scanning and closer inspection, while the field of view measures approximately 13.5 x 10.1, equivalent to around 24 x 18 m at 100 m. The stated detection range reaches up to 670 m for a target measuring 1.7 m x 0.5 m.

Thermal imagery is displayed through a 0.39-inch AMOLED screen with a resolution of 1024 x 768, providing a clear and detailed viewing experience. The monocular supports up to six colour palettes, allowing users to choose the thermal display mode that best suits the environment and viewing preference. A 50 Hz frame rate helps provide smooth imaging, while the 5 diopter adjustment, 25 mm eye relief and 10 mm exit pupil diameter support comfortable viewing. The Nocpix Lumi P13 includes 32 GB of built-in memory for storing recorded content and also features an integrated microphone. Power is supplied by a replaceable 18650 lithium-ion battery, providing up to approximately six hours of maximum operating time at 22C. The replaceable battery design offers added convenience for longer sessions, as spare batteries can be carried and exchanged when required.

Designed for outdoor use, the Lumi P13 carries an IP67 protection rating and is suitable for operating temperatures ranging from -20C to +50C. Its compact dimensions of approximately 134 x 47 x 74 mm and weight of around 310 g with the battery installed make it highly portable and easy to carry during extended periods of use. Combining a compact body, F0.9 large-aperture lens, 670 m detection range, AMOLED display and 32 GB of internal storage, the Nocpix Lumi P13 offers a practical thermal observation solution for users who value portability and straightforward operation. Its weather-resistant construction and replaceable battery further enhance its suitability for regular outdoor thermal viewing.

Features

• Up to 6 Colour Palettes
• 0.39 inch AMOLED
• Up to 6.0h Max Operating Time
• 32GB Built-in Memory
• IP67 Rated
• F0.9 Large Aperture
