Nocpix Omni H35R 8K Multi-Spectrum Binocular

Manufacturer's Website

Description

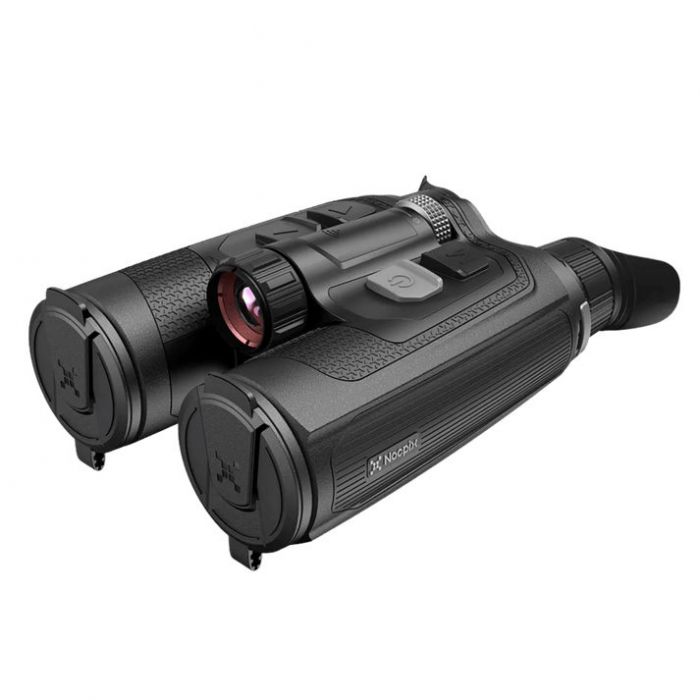

Introducing the Nocpix Omni H35R 8K Multi-Spectrum Binocular. Combines high-resolution digital day and night vision with advanced thermal imaging in a single dual-spectrum observation platform. It features a 640 x 512 thermal sensor with a 12 m pixel pitch alongside an 8K-class digital sensor with a resolution of 8192 x 6144 and a fine 1.2 m pixel pitch. This combination allows users to switch between thermal and digital observation depending on environmental conditions, while Picture-in-Picture Dual Vision provides an additional way to view information from both channels. The thermal channel uses a 35 mm F0.9 objective lens and offers a magnification range of 2x to 16x, with a detection range of up to 1,800 m for a target measuring 1.7 m x 0.5 m. Its field of view measures approximately 13.8 x 10.4, equivalent to around 24.3 x 18.2 m at 100 m. With a thermal sensitivity of less than 15 mK NETD and a 50 Hz frame rate, the Omni H35R is designed to provide detailed and smooth thermal imagery while helping distinguish subtle temperature differences in demanding viewing conditions.

The digital channel is equipped with a 50 mm F1.8 objective lens and provides 3x to 18x magnification. Its field of view measures approximately 8.8 x 6.6, equivalent to around 15.4 x 11.5 m at 100 m. The 8K-class digital sensor is designed to capture fine environmental detail during daylight, dusk and low-light observation. A detachable 850 nm infrared illuminator is included for enhanced night-time viewing, while dual IR illumination options and specialised night-vision palettes provide additional flexibility for different observation environments. Images are displayed through a 0.5-inch AMOLED screen with a resolution of 1600 x 1200. Up to seven colour palettes are available for thermal viewing, allowing users to adapt the image presentation according to the environment and personal preference. The binocular also provides a 25 mm eye relief, 12 mm exit pupil diameter and a diopter adjustment range from -4 to +4 for comfortable viewing during extended observation sessions.

An integrated Class 1 laser rangefinder provides distance measurements out to a maximum of 1,000 m, while onboard ballistic functionality adds additional ranging and calculation support. This integrated system allows users to obtain distance information directly through the binocular without relying on a separate rangefinding device. An integrated microphone is also included for compatible audio recording. The Nocpix Omni H35R provides 64 GB of built-in memory for storing recorded media and observation data. Power is supplied through a combination of built-in power and two replaceable 18650 batteries, providing up to approximately 7.5 hours of maximum operating time at 22C. This battery configuration is designed to provide practical runtime for extended outdoor observation while still allowing removable batteries to be exchanged when additional operating time is required.

Designed for demanding outdoor environments, the Omni H35R carries an IP67 protection rating and can operate in temperatures ranging from -20C to +50C. The binocular measures approximately 198 x 144 x 75 mm and weighs less than 999 g without batteries. Combining 8K-class digital imaging, 640 x 512 thermal detection, dual-spectrum viewing, long-range laser ranging, night-vision capability and a rugged weather-resistant construction, the Nocpix Omni H35R provides a comprehensive observation solution for day, dusk and night-time use.

Features

• Up to 7 Colour Palettes
• 0.5 inch AMOLED
• Up to 7.5h max Operating Time
• 64GB Built-in Memory
• IP67 Rated
• Dual IR Illumination Options
• Picture-in-Picture Dual Vision & Specialized Night Vision Palettes
• Integrated 1,000m Laser Rangefinder & Ballistics

Specifications
