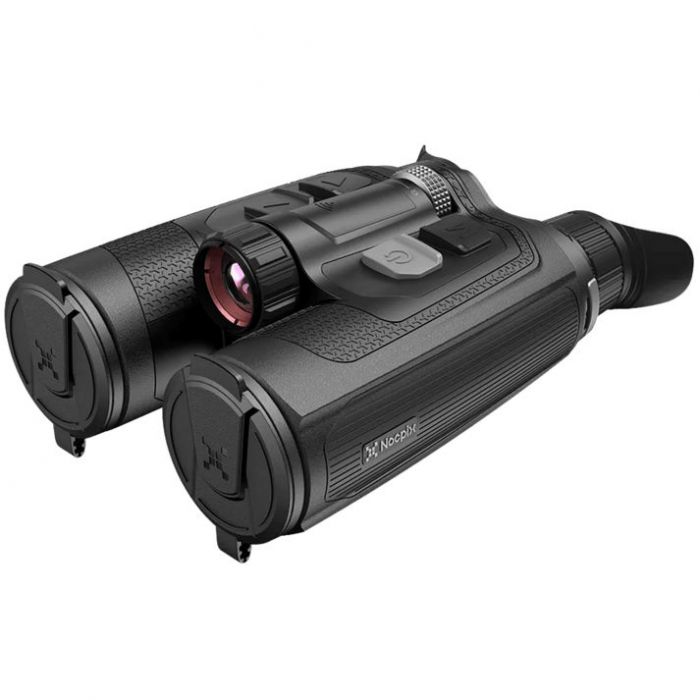

Nocpix Omni L19R 8K Multi-Spectrum Binocular

Manufacturer's Website

Description

Introducing the Nocpix Omni L19R 8K Multi-Spectrum Binocular. Combines ultra-high-resolution digital day and night vision with thermal imaging in a single dual-spectrum observation platform. Its digital channel features an 8K-class 8192 x 6144 sensor with a fine 1.2 m pixel architecture, paired with a 50 mm F1.8 objective lens for exceptionally detailed daytime, dusk and low-light viewing. This high-resolution digital system is designed to reveal fine environmental textures and subject detail that can be difficult to distinguish with lower-resolution optical systems. The thermal channel uses a 384 x 288 sensor with a 12 m pixel pitch and a sensitivity of less than 15 mK NETD. Combined with a 19 mm F0.9 objective lens and a 50 Hz frame rate, it provides responsive thermal observation with a detection range of up to 980 m for a target measuring 1.7 m x 0.5 m. Thermal magnification ranges from 1.5x to 12x, while the field of view measures approximately 12.5 x 9.4, equivalent to around 21.9 x 16.5 m at 100 m.

The digital channel provides 3x to 18x magnification and a field of view of approximately 8.8 x 6.6, or around 15.4 x 11.5 m at 100 m. Dual IR illumination options support enhanced night-time viewing, while specialised night-vision palettes provide additional flexibility in low-light environments. Picture-in-Picture Dual Vision allows information from both imaging channels to be viewed together for a more comprehensive understanding of the surrounding scene. Images are displayed through a 0.5-inch AMOLED screen with a resolution of 1600 x 1200. Up to seven thermal colour palettes are available, allowing the display to be adapted to different environments and personal viewing preferences. The binocular also offers a 25 mm eye relief, 12 mm exit pupil diameter and a diopter adjustment range from -4 to +4 for comfortable observation over extended periods.

An integrated Class 1 laser rangefinder provides distance measurements out to a maximum of 1,000 m, while onboard ballistic functionality adds further ranging and calculation support. This integrated design reduces the need for a separate rangefinder and allows distance information to be accessed directly through the binocular. A built-in microphone is also included for compatible audio recording. The Omni L19R includes 64 GB of internal memory for storing recorded media and observation data. Power is supplied through a combination of built-in power and two replaceable 18650 batteries, providing up to approximately 7.5 hours of maximum operating time at 22C. This setup offers practical endurance for longer outdoor sessions while still allowing removable batteries to be exchanged when additional runtime is required.

Designed for demanding outdoor environments, the Nocpix Omni L19R carries an IP67 protection rating and can operate in temperatures ranging from -20C to +50C. The binocular measures approximately 198 x 144 x 75 mm and weighs less than 999 g without batteries. Combining an 8K-class digital sensor, thermal imaging, dual IR illumination, Picture-in-Picture viewing, integrated 1,000 m laser ranging and a rugged weather-resistant body, the Omni L19R provides a versatile multispectral observation solution for day, dusk and night-time use.

Features

• Up to 7 Colour Palettes
• 0.5 inch AMOLED
• Up to 7.5h max Operating Time
• 64GB Built-in Memory
• IP67 Rated
• Dual IR Illumination Options
• Picture-in-Picture Dual Vision & Specialized Night Vision Palettes
• Integrated 1,000m Laser Rangefinder & Ballistics
