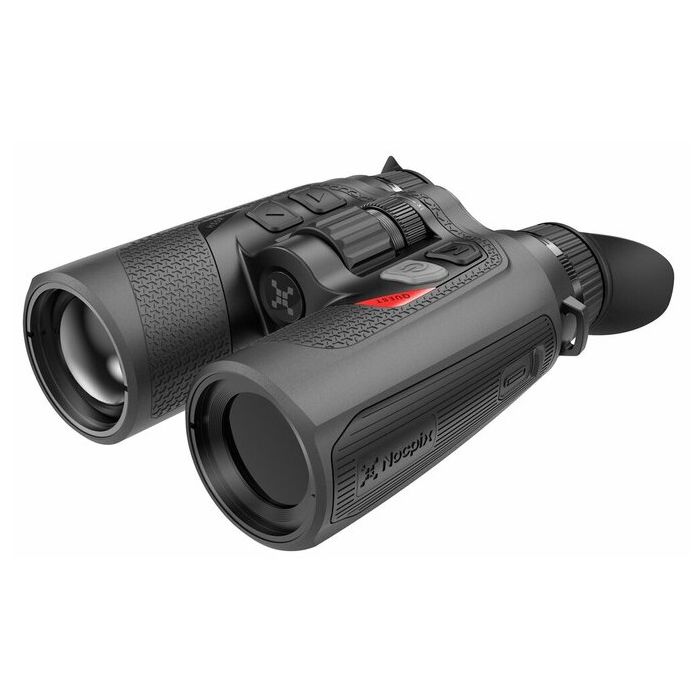

Nocpix QUEST H35R Thermal Imaging Binocular

Manufacturer's Website

Description

Introducing the Nocpix QUEST H35R Thermal Imaging Binocular. The Nocpix QUEST H35R Thermal Imaging Binocular is a compact and feature-rich thermal imaging device designed for a wide range of applications, from hunting and wildlife observation to law enforcement and surveillance. The device features a high-resolution 0.72-inch AMOLED display with a resolution of 1920x1200, providing a clear and detailed image of the thermal environment, even in low-light conditions. The built-in 64GB memory capacity allows for extensive storage of thermal imaging data, making it an ideal tool for applications that require the ability to record and analyse thermal signatures over extended periods.

The QUEST H35R features a thermal sensor with a resolution of 640x512 pixels, with a pixel pitch of 12um, allowing for high-definition thermal imaging. The device's NETD (Noise Equivalent Temperature Difference) rating of <15mK ensures that it can detect even the slightest temperature differences, making it an ideal tool for applications that require high sensitivity. The device's frame rate of 60Hz ensures smooth and seamless thermal imaging, even when tracking moving targets.

One of the key features of the QUEST H35R is its integrated Laser Ranging Finder (LRF), which allows the user to measure distances with high accuracy. The device's IP67 waterproof rating ensures that it can withstand exposure to water and dust, making it a reliable tool for use in harsh environments. The device's objective lens has a focal length of 35mm and an aperture of F0.9, providing a wide field of view and high image quality.

The QUEST H35R offers a range of features that make it an ideal tool for thermal imaging applications. The device's built-in microphone allows for audio recording and playback, and the device's safety class for laser is Class 1, making it safe for use around people. The device's maximum operating time is up to 6 hours, making it a reliable tool for extended periods of use. The device's Magnification range is 3-24x, and the field of view is 12.5x10/22x18 at 100m, making it suitable for a wide range of applications. The device's detective range is 1800m, with a target size of 1.7mx0.5m, and a probability of detection (P(n)) of 99%.

Features

• 0.72 inch AMOLED
• Up to 6h Battery Life
• 64GB Memory Capacity
• Integrated LRF
• IP67 waterproof rating
• Vision + System
• R+ Al lmage Algorithm

Specifications
