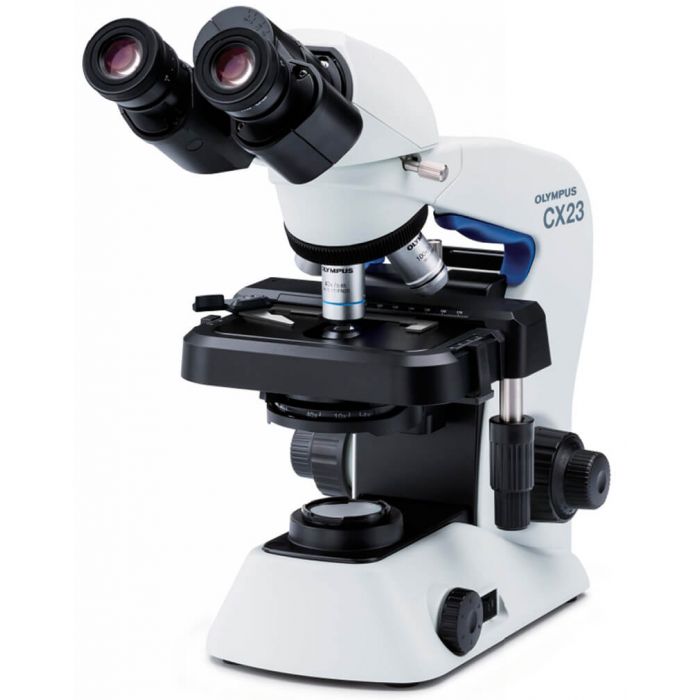

Olympus CX23 Microscope
R58,159.00
SKU
OLECX23LEDRFS1
Magnification 40x, 100x 400x, 1000x
Fixed eyepieces
Rackless stage and stage cover
Locking pin for easy binocular rotation
Interpupillary adjustment
Eyepoint height adjustment
Focus lock
Wide field of view
Built-in security slot
Shipping restrictions apply.
Shipped in 4 - 6 Working Weeks
Please Note: Product is a 'quote per order' item, due to different accessories and extras needed depending on your usage.
Description
Designed for operational ease, the Olympus CX23 Microscope’s unique features accommodates the student and every requirement in the educational setting. This cost-effective system provides easy and safe operation throughout the workflow and ensures outstanding optical performance with large field number (FN) 20.
Also, the built-in LED light source provides uniform and stable illumination for long term with low power consumption, and its reduced blue color preserves vivid colors of the sample.
Features
- Ergonomic grip
- Angled arm enables comfortable carrying
- Fixed eyepieces
- Rackless stage and stage cover
- Convenient and easily accessible power cable storage
- Locking pin for easy binocular rotation
- Interpupillary adjustment
- Eyepoint height adjustment
- Focus lock
- Wide field of view
- Built-in security slot
Specifications
| Magnification | 40x, 100x 400x, 1000x |
| Optical System | Infinity optical system |
| Illumination System | Built-in transmited illumination system |
| LED power consumption: 0.5 W (nominal value) | |
| Focusing | Stage height movement (coarse movement stroke: 15 mm ) |
| Coarse adjustment limit stopper | |
| Torque adjustment for coarse adjustment knob | |
| Fine focus knob (minimum adjutsment gradations: 2.5 μm) | |
| Revolving Nosepiece | Fixed quadruple nosepiece with inward tilt |
| Stage | Wire movement mechanical fixed stage, (W × D): 174 mm × 89 mm |
| Traveling range (X × Y): 76 mm × 30 mm | |
| Single specimen holder | |
| Specimen position scale | |
| Observation Tube | |
| Type (anti-fungal) | Binocular, Trinocular |
| Eyepiece (anti-fungal) | 10X Field Number (FN): 20, 15X Field Number (FN): 12 |
| Tube Inclination | 30° |
| Light Path Selector | None, Eyepiece/Camera port = 100/0 or 0/100 |
| Interpupillary Distance Adjusting Range | 48‒75 mm |
| Condenser | Abbe condenser NA 1.25 with oil immersion |
| Rated Voltage/Electric Current | AC 100 – 240 V 50/60 Hz 0.4 A |
| Power Consumption | Less than 2 W |
| Weight | 5,9kg |
| Dimensions | 198 x 258 x 384 mm |
| Free Shipping | No |
|---|
