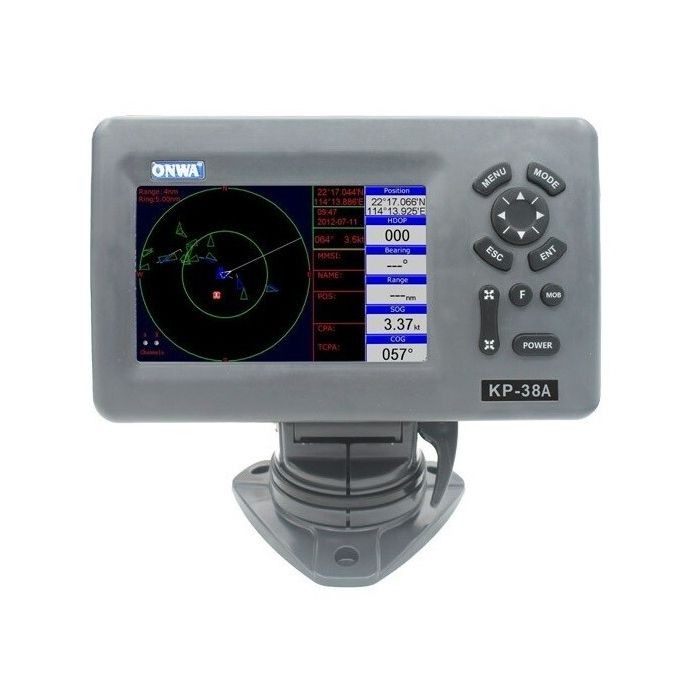

Onwa 38A Gps Chartplotter With Class B Ais Transponder - 5", Grey
R8,019.00
SKU
KP-38A
Description
Go fishing the proper way with the Onwa 38A Gps Chartplotter With Class B AIS Transponder - 5", Grey. This fish finder features a full 5 display with a resolution of 800 x 480 pixels.
Nobody knows the waters you fish better than you and your fellow fishermen. While you are trolling the shorelines and the depths, Quickdraw Contours mapping software creates HD fishing maps of the places you've been. No special knowledge is required.
When fishing you are bound to get wet or at least the water get everywhere, thats why the ONWA 38A GPS Chartplotter with Class B AIS Transponder has been design with a IPX5 waterproof display and a IP66 water proof antenna, helping you get the most accurate readings possible in any conditions.
Features
- 5-inch high resolution lcd
- External gps antenna included
- Built-in class b ais transponder
- Easy to operate
- K-chart mapping included
- C-map nt max compatible
- Ingress protected to ip66
Specifications
| Size | 169mm x 198.1mm x 137mm (H x W x D) |
| Cable | 4m |
| Weight | 0.8kg |
| Display | 5" Colour TFT dayview LCD, 800x480 pixels |
| Input Port | 1x opto-isolated |
| Output Port | 1x RS232 Output Port |
| Waterproof | |
| Display | IPX5 |
| Antenna | IP66 |
| Temperature Range | -5 degree Celsius to +50 degree Celsius |
| Transmitter | 1x |
| Receiver | 2x One Time Shared Between Ais/Dsc |
| Frequency | 156.025 To 162.025 Mhz In 25 Khz |
| Output Power | 2 Watts Typical |
| Channel Bandwidth | 25 Khz |
| Channel Step | 25 Khz |
| Bit Rate | 9600 B/S +- 50 Ppm (Gmsk), 1200 B/S +- 30 Ppm (Fsk) |
| Message Error Rate | Less Than 2% |
| Co-Channel | 10Db |
| Imd | 62 Db |
| Blocking | 84 Db |
| Hot Start | 45 Seconds Average |
| Update Rate | 1/Second Or 10/Second |
| Position | 2.5 Meters (95%) Without S/A |
| Velocity | 0.1 Meter/Sec Without S/A |
| Time | 100Ns Synchronized To Gps Time |
| Dynamics Altitude | 50,000M Max |
| Velocity | 500 M/S |
| Acceleration | 4G Max |
| Datum Wgs | 84 And User Define |
| Free Shipping | No |
|---|
