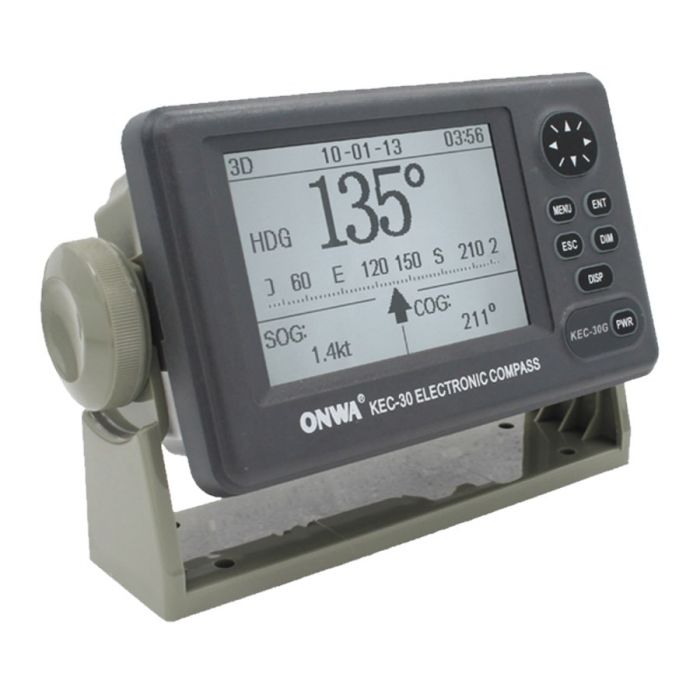

The Onwa Digital Electronic Compass with GPS is a cost-effective and high-accuracy solution designed to provide reliable heading information for marine applications. The KEC30G(MK2) model not only offers precise compass readings but also incorporates GPS functionality, offering additional valuable data such as longitude, latitude, speed over ground (SOG), and course over ground (COG).
When used in conjunction with the Onwa Marine Heading Sensor KA-GC9A, Satellite Compass KA-SC20, or KA-SC90, the compass delivers enhanced accuracy and reliability. These high-quality heading sensors ensure optimal performance and contribute to the overall precision of the system.
The compass allows for manual or automatic correction of magnetic deviation, ensuring that the heading information remains accurate even in the presence of magnetic disturbances. This feature provides flexibility and adaptability to varying magnetic conditions, further enhancing the reliability of the compass readings. Users have the option to select the desired output baud rate and intervals for the heading information, choosing from HDT (True heading), HDM (Magnetic heading), or HDG (Heading relative to true north). This customizable output allows seamless integration with other onboard equipment, enabling efficient data sharing and system interoperability.
Furthermore, the compass provides the capability to interface the GPS and heading signals with other onboard devices or systems. This versatility allows for easy integration into existing marine systems and facilitates data exchange for comprehensive navigation and situational awareness. The compass is built to withstand the demanding marine environment, featuring a waterproof and robust design. It is specifically engineered to endure outdoor conditions, ensuring reliable operation even in challenging marine environments. This durability guarantees long-lasting performance and peace of mind during marine operations. The Onwa Digital Electronic Compass with GPS offers a cost-effective solution for obtaining accurate heading information in marine applications. With its integration of GPS functionality, compatibility with high-accuracy heading sensors, manual or automatic magnetic deviation correction, customizable output options, and rugged waterproof construction, this compass is an ideal choice for a wide range of marine navigation and orientation needs.
General | |
HEADING Sensor | KA-GC9A, KA-SC20, KA-SC90 |
Input | |
NMEA0183 | x2 |
Input Sentences | GGA, GLL, GMS, GNS, GSA, GSV, RMC, VTG, HDT |
Baudrate | Auto Scan Up to 38400 |
Support Heading/GPS sensor | KA-GC9A, KA-SC20 and KA-SC90 |
Output | |
Output Sentences | HDT, HDM and HDG (selectable) and RMC, GSA, GGA, VTG, ZDA (Fixed) |
Heading Output Interval Selections | 25ms, 100ms, 200ms (default) and 1,000ms |
Output Baudrate Selections | 4800 (default), 9600, 19200 and 38400 (selectable) |
Environment Conditions | |
Ambient Temperature | |
Display Unit | -15 C to +55 C |
Heading/GPS Sensor Unit | -25 C to +70 C (for KA-GC05 and KA-GC9A) |
Humidity | 93% 3% on 40 C |
Waterproofing | |
Display unit | IPX5 |
Heading/GPS Sensor Unit | IPX7 (for KA-GC05 and KA-GC9A) |
Power | |
Electrical | 10.5 40VDC |
Protection | Over-current, over-voltage, power transient and accidental reverse polarity protection |
